Manufacturer Part Number: | ESDA18-1F2 |
---|---|
Manufacturer: | STMicroelectronics |
Product Category: | TVS - Diodes |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | TVS DIODE 10VWM 20VC FLIPCHIP |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | ESDA18-1F2 Datasheet |
Internal Part Number | 898-ESDA18-1F2 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Other Related Documents | ESDA18-1F2 View All Specifications | |
Category | Circuit Protection | |
Family | TVS - Diodes | |
Manufacturer | STMicroelectronics | |
Series | ESDA, TRANSIL™ | |
Packaging | Tape & Reel (TR) | |
Part Status | Active | |
Type | Zener | |
Unidirectional Channels | 1 | |
Bidirectional Channels | - | |
Voltage - Reverse Standoff (Typ) | 10V | |
Voltage - Breakdown (Min) | 16V | |
Voltage - Clamping (Max) @ Ipp | 20V | |
Current - Peak Pulse (10/1000µs) | 1A (8/20µs) | |
Power - Peak Pulse | 700W | |
Power Line Protection | No | |
Applications | General Purpose | |
Capacitance @ Frequency | - | |
Operating Temperature | - | |
Mounting Type | Surface Mount | |

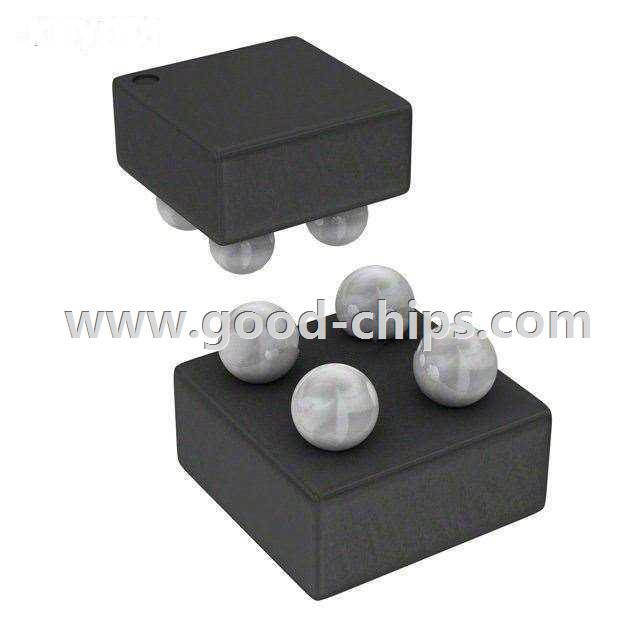

Package / Case | 4-WFBGA, FCBGA | |
Supplier Device Package | 4-FlipChip | |
Standard Package | 5,000 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | ESDA18-1F2 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
ESDA18-1F2 is in stock for immediate shipping now. We are the distributor of STMicroelectronics all series components. The condition of ESDA18-1F2 is new and unused, you can buy ESDA18-1F2 STMicroelectronics with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for ESDA18-1F2.
