Manufacturer Part Number: | ESDA14V2-1BF3 |
---|---|
Manufacturer: | STMicroelectronics |
Product Category: | TVS - Diodes |
Available Quantity: | 24010 Pieces |
Unit Price: | Quote by Email |
Description: | TVS DIODE 12VWM 2FLIPCHIP |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | ESDA14V2-1BF3 Datasheet |
Internal Part Number | 898-ESDA14V2-1BF3 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Other Related Documents | ESDA14V2-1BF3 View All Specifications | |
Online Catalog | Transil™ ESDA Series | |
Category | Circuit Protection | |
Family | TVS - Diodes | |
Manufacturer | STMicroelectronics | |
Series | ESDA, TRANSIL™ | |
Packaging | Tape & Reel (TR) | |
Part Status | Active | |
Type | Zener | |
Unidirectional Channels | - | |
Bidirectional Channels | 1 | |
Voltage - Reverse Standoff (Typ) | 12V | |
Voltage - Breakdown (Min) | 14.2V | |
Voltage - Clamping (Max) @ Ipp | - | |
Current - Peak Pulse (10/1000µs) | - | |
Power - Peak Pulse | 50W | |
Power Line Protection | No | |
Applications | General Purpose | |
Capacitance @ Frequency | - | |
Operating Temperature | -40°C ~ 125°C (TJ) | |
Mounting Type | Surface Mount | |

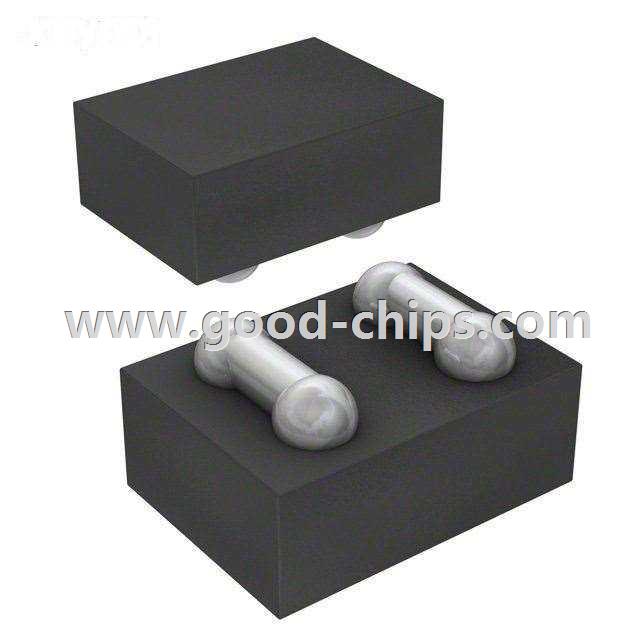

Package / Case | 2-XFBGA, FCBGA | |
Supplier Device Package | 2-FlipChip | |
Standard Package | 15,000 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | ESDA14V2-1BF3 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
ESDA14V2-1BF3 is in stock for immediate shipping now. We are the distributor of STMicroelectronics all series components. The condition of ESDA14V2-1BF3 is new and unused, you can buy ESDA14V2-1BF3 STMicroelectronics with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for ESDA14V2-1BF3.
