| Manufacturer Part Number: | ESD9B5.0ST5G |
|---|---|
| Manufacturer: | ON Semiconductor |
| Product Category: | TVS - Diodes |
| Available Quantity: | 315723 Pieces |
| Unit Price: | Quote by Email |
| Description: | TVS DIODE 5VWM SOD923 |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | ESD9B5.0ST5G Datasheet |
| Internal Part Number | 898-ESD9B5.0ST5G | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| PCN Design/Specification | Copper Wire 19/May/2010 | |
| PCN Assembly/Origin | Second Source FAB Qualification 27/Aug/2014 | |
| Online Catalog | ESD Series | |
| Category | Circuit Protection | |
| Family | TVS - Diodes | |
| Manufacturer | ON Semiconductor | |
| Series | Automotive, AEC-Q101 | |
| Packaging | Digi-Reel® | |
| Part Status | Active | |
| Type | Zener | |
| Unidirectional Channels | - | |
| Bidirectional Channels | 1 | |
| Voltage - Reverse Standoff (Typ) | 5V (Max) | |
| Voltage - Breakdown (Min) | 5.8V | |
| Voltage - Clamping (Max) @ Ipp | - | |
| Current - Peak Pulse (10/1000µs) | - | |
| Power - Peak Pulse | - | |
| Power Line Protection | No | |
| Applications | Automotive | |
| Capacitance @ Frequency | 15pF @ 1MHz | |
| Operating Temperature | -55°C ~ 150°C (TJ) | |
| Mounting Type | Surface Mount | |

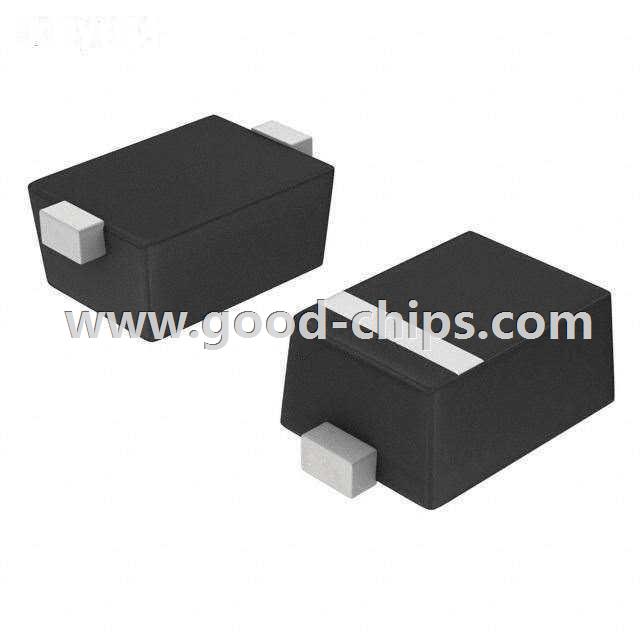

| Package / Case | SOD-923 | |
| Supplier Device Package | SOD-923 | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | ESD9B5.0ST5G | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
ESD9B5.0ST5G is in stock for immediate shipping now. We are the distributor of ON Semiconductor all series components. The condition of ESD9B5.0ST5G is new and unused, you can buy ESD9B5.0ST5G ON Semiconductor with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for ESD9B5.0ST5G.
