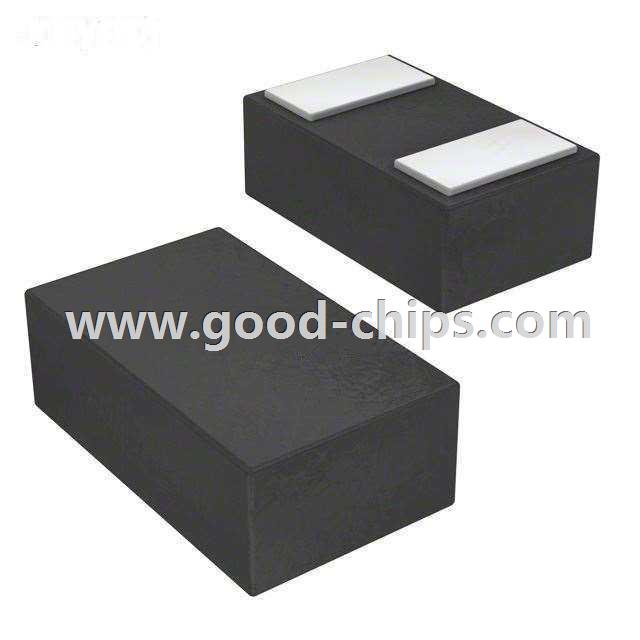

| Manufacturer Part Number: | ESD8011MUT5G |
|---|---|
| Manufacturer: | ON Semiconductor |
| Product Category: | TVS - Diodes |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | TVS DIODE 5.5VWM 19VC X3DFN2 |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | ESD8011MUT5G Datasheet |
| Internal Part Number | 898-ESD8011MUT5G | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| PCN Packaging | New Carrier Tape x3DFN2 15/Sep/2015 Covering Tape/Material Chg 20/May/2016 | |
| Online Catalog | ESD Series | |
| Category | Circuit Protection | |
| Family | TVS - Diodes | |
| Manufacturer | ON Semiconductor | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Type | Zener | |
| Unidirectional Channels | - | |
| Bidirectional Channels | 1 | |
| Voltage - Reverse Standoff (Typ) | 5.5V (Max) | |
| Voltage - Breakdown (Min) | 7.3V (Typ) | |
| Voltage - Clamping (Max) @ Ipp | 19V | |
| Current - Peak Pulse (10/1000µs) | - | |
| Power - Peak Pulse | - | |
| Power Line Protection | No | |
| Applications | General Purpose | |
| Capacitance @ Frequency | 10pF @ 1MHz | |
| Operating Temperature | -55°C ~ 125°C (TJ) | |
| Mounting Type | Surface Mount | |
| Package / Case | 2-XFDFN | |
| Supplier Device Package | 2-X3DFN (0.62x0.32) | |
| Standard Package | 10,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | ESD8011MUT5G | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
ESD8011MUT5G is in stock for immediate shipping now. We are the distributor of ON Semiconductor all series components. The condition of ESD8011MUT5G is new and unused, you can buy ESD8011MUT5G ON Semiconductor with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for ESD8011MUT5G.
