| Manufacturer Part Number: | ES5P09K5FA |
|---|---|
| Manufacturer: | JAE Electronics |
| Product Category: | Solid State Lighting Connectors - Contacts |
| Available Quantity: | 27010 Pieces |
| Unit Price: | Quote by Email |

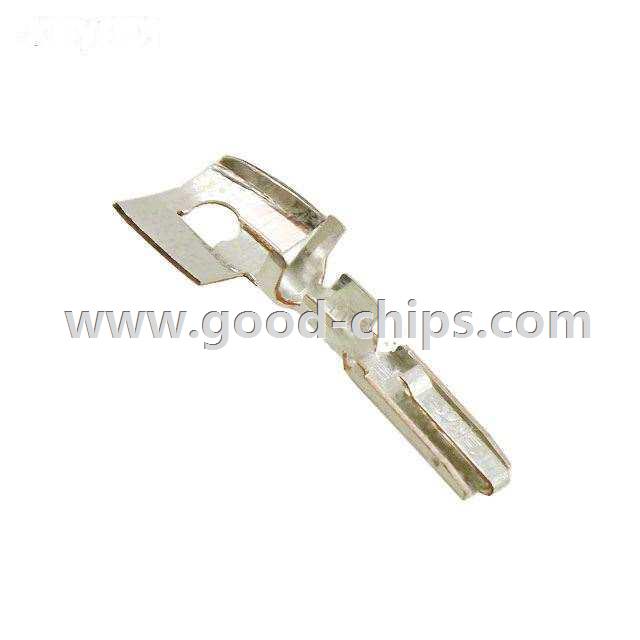

| Description: | CONN SSL PLUG CONTACT 1POS CRIMP |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | ES5P09K5FA Datasheet |
| Internal Part Number | 898-ES5P09K5FA | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | ES5 Series One-Position Board-to-Cable Connector for Lighting | |
| Design Resources | Lighting Product Selector | |
| Featured Product | LED Lighting Internal Connectors | |
| Online Catalog | ES5 Series | |
| Category | Connectors, Interconnects | |
| Family | Solid State Lighting Connectors - Contacts | |
| Manufacturer | JAE Electronics | |
| Series | ES5 | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Style | Board to Cable/Wire | |
| Connector Type | Contact, Plug | |
| Number of Positions | 1 | |
| Mounting Type | Free Hanging (In-Line) | |
| Termination | Crimp | |
| Pitch | - | |
| Wire Gauge | 24-26 AWG | |
| Features | - | |
| Contact Finish | Tin | |
| Contact Material | Copper Alloy | |
| Fastening Type | Latch Lock | |
| Housing Color | - | |
| Housing Material | - | |
| Operating Temperature | -40°C ~ 105°C | |
| Voltage Rating | - | |
| Current Rating | 4A | |
| Mating Cycles | 20 | |
| Standard Package | 9,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | ES5P09K5FA | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
ES5P09K5FA is in stock for immediate shipping now. We are the distributor of JAE Electronics all series components. The condition of ES5P09K5FA is new and unused, you can buy ES5P09K5FA JAE Electronics with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for ES5P09K5FA.
