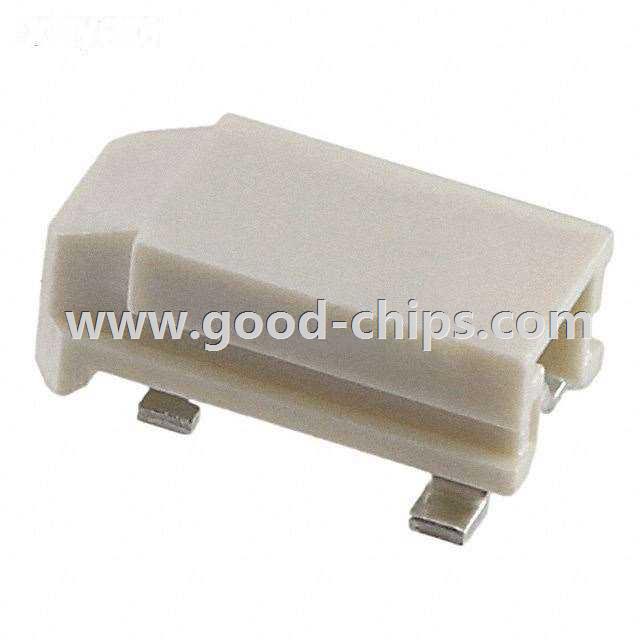

| Manufacturer Part Number: | ES3S001JF3R3300 |
|---|---|
| Manufacturer: | JAE Electronics |
| Product Category: | Solid State Lighting Connectors |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | SSL Connector 1 Position Receptacle, Poke-In Wire Board to Cable/Wire Solder |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | ES3S001JF3R3300 Datasheet |
| Internal Part Number | 898-ES3S001JF3R3300 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | ES3 (JF3 type) Cable Insertion Type Connector | |
| Design Resources | Lighting Product Selector | |
| Featured Product | LED Lighting Internal Connectors | |
| Online Catalog | ES3 Series | |
| Category | Connectors, Interconnects | |
| Family | Solid State Lighting Connectors | |
| Manufacturer | JAE Electronics | |
| Series | ES3 | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Style | Board to Cable/Wire | |
| Connector Type | Receptacle, Poke-In Wire | |
| Number of Positions | 1 | |
| Mounting Type | Surface Mount, Right Angle | |
| Termination | Solder | |
| Pitch | - | |
| Fastening Type | - | |
| Features | - | |
| Housing Color | - | |
| Wire Gauge | 24-26 AWG | |
| Contact Material | Copper Alloy | |
| Contact Finish | Tin | |
| Housing Material | Liquid Crystal Polymer (LCP) | |
| Operating Temperature | -40°C ~ 105°C | |
| Voltage Rating | - | |
| Current Rating | 2A | |
| Ingress Protection | - | |
| Mating Cycles | 5 | |
| Standard Package | 3,300 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | ES3S001JF3R3300 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
ES3S001JF3R3300 is in stock for immediate shipping now. We are the distributor of JAE Electronics all series components. The condition of ES3S001JF3R3300 is new and unused, you can buy ES3S001JF3R3300 JAE Electronics with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for ES3S001JF3R3300.
