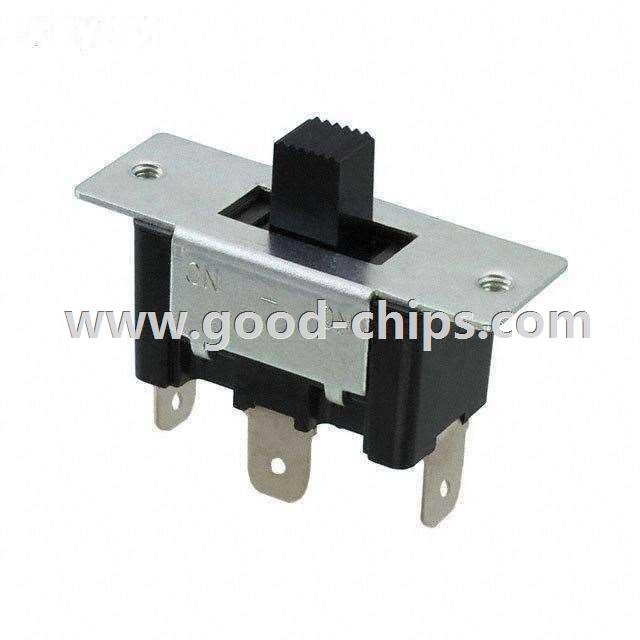

| Manufacturer Part Number: | ES125D12-Z |
|---|---|
| Manufacturer: | Copal Electronics Inc. |
| Product Category: | Slide Switches |
| Available Quantity: | 9207 Pieces |
| Unit Price: | Quote by Email |
| Description: | Slide Switch SPDT Panel Mount |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | ES125D12-Z Datasheet |
| Internal Part Number | 898-ES125D12-Z | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | Slide Switch | |
| Online Catalog | ES Series | |
| Category | Switches | |
| Family | Slide Switches | |
| Manufacturer | Copal Electronics Inc. | |
| Series | ES | |
| Packaging | Bulk | |
| Part Status | Active | |
| Circuit | SPDT | |
| Contact Timing | Non-Shorting (BBM) | |
| Switch Function | On-On | |
| Current Rating | 25A (AC) | |
| Voltage Rating - AC | 125V | |
| Voltage Rating - DC | - | |
| Actuator Type | Standard | |
| Actuator Length | 9.00mm | |
| Contact Material | - | |
| Contact Finish | - | |
| Mounting Type | Panel Mount | |
| Termination Style | Solder Lug | |
| Features | - | |
| Actuator Material | - | |
| Switch Travel | 8.00mm | |
| Operating Temperature | - | |
| Mechanical Life | - | |
| Electrical Life | 20,000 Cycles | |
| Operating Force | - | |
| Standard Package | 10 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | ES125D12-Z | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
ES125D12-Z is in stock for immediate shipping now. We are the distributor of Copal Electronics Inc. all series components. The condition of ES125D12-Z is new and unused, you can buy ES125D12-Z Copal Electronics Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for ES125D12-Z.
