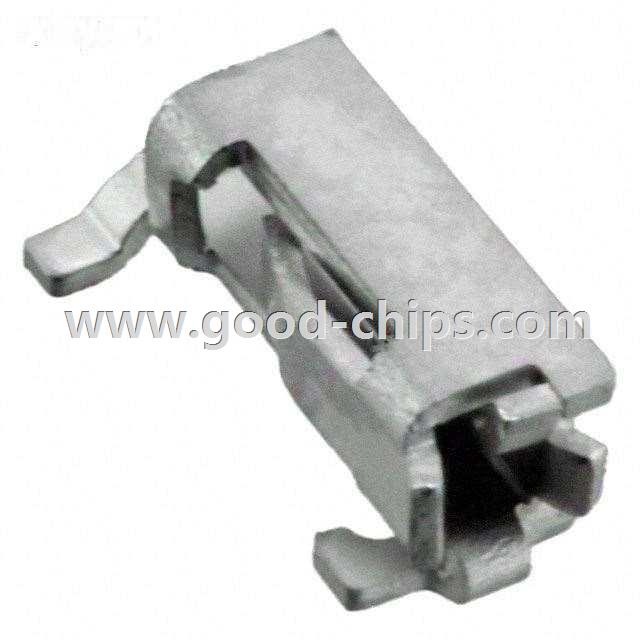

| Manufacturer Part Number: | ES10S001JF1R4500 |
|---|---|
| Manufacturer: | JAE Electronics |
| Product Category: | Solid State Lighting Connectors - Contacts |
| Available Quantity: | 13510 Pieces |
| Unit Price: | Quote by Email |
| Description: | CONN SSL SCKT CONTACT 1POS SLDR |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | ES10S001JF1R4500 Datasheet |
| Internal Part Number | 898-ES10S001JF1R4500 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | ES10 Series of Board-to-Cable Connectors | |
| Design Resources | Lighting Product Selector | |
| Featured Product | LED Lighting Internal Connectors | |
| Online Catalog | ES10 Series | |
| Category | Connectors, Interconnects | |
| Family | Solid State Lighting Connectors - Contacts | |
| Manufacturer | JAE Electronics | |
| Series | ES10 | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Style | Board to Cable/Wire | |
| Connector Type | Contact, Socket | |
| Number of Positions | 1 | |
| Mounting Type | Surface Mount, Right Angle | |
| Termination | Solder | |
| Pitch | - | |
| Wire Gauge | 24-26 AWG | |
| Features | - | |
| Contact Finish | Tin | |
| Contact Material | Copper Alloy | |
| Fastening Type | - | |
| Housing Color | - | |
| Housing Material | - | |
| Operating Temperature | -40°C ~ 105°C | |
| Voltage Rating | - | |
| Current Rating | 2A | |
| Mating Cycles | 5 | |
| Standard Package | 4,500 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | ES10S001JF1R4500 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
ES10S001JF1R4500 is in stock for immediate shipping now. We are the distributor of JAE Electronics all series components. The condition of ES10S001JF1R4500 is new and unused, you can buy ES10S001JF1R4500 JAE Electronics with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for ES10S001JF1R4500.
