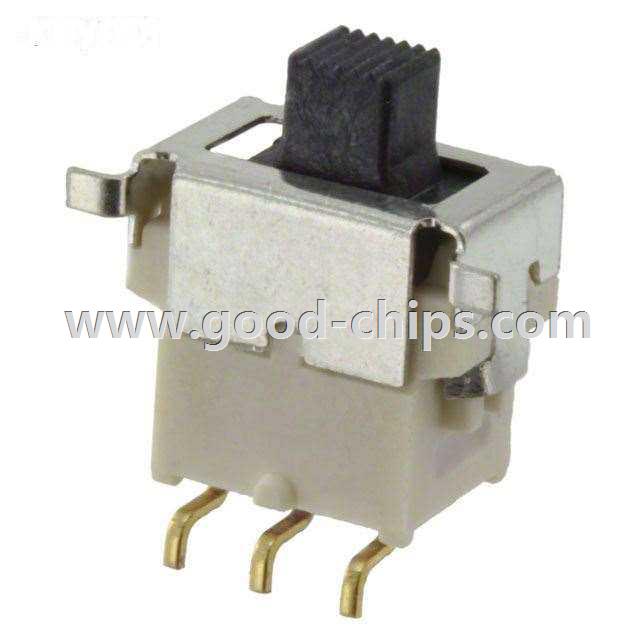

| Manufacturer Part Number: | ES03MSABE |
|---|---|
| Manufacturer: | C&K Components |
| Product Category: | Slide Switches |
| Available Quantity: | 9280 Pieces |
| Unit Price: | Quote by Email |
| Description: | Slide Switch SPDT Surface Mount, Right Angle |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | ES03MSABE Datasheet |
| Internal Part Number | 898-ES03MSABE | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | Introduction to Electromechanical Switches | |
| PCN Design/Specification | Red to White Epoxy 29/June/2009 | |
| Online Catalog | ES Series | |
| Category | Switches | |
| Family | Slide Switches | |
| Manufacturer | C&K Components | |
| Series | ES | |
| Packaging | Digi-Reel® | |
| Part Status | Active | |
| Circuit | SPDT | |
| Contact Timing | Not Specified | |
| Switch Function | On-Off-On | |
| Current Rating | 0.4VA (AC/DC) | |
| Voltage Rating - AC | 20V | |
| Voltage Rating - DC | 20V | |
| Actuator Type | Standard | |
| Actuator Length | 3.07mm | |
| Contact Material | Bronze | |
| Contact Finish | Gold | |
| Mounting Type | Surface Mount, Right Angle | |
| Termination Style | Gull Wing | |
| Features | Epoxy Sealed Terminals, IP57 | |
| Actuator Material | Liquid Crystal Polymer (LCP) | |
| Switch Travel | 2.29mm | |
| Operating Temperature | -30°C ~ 85°C | |
| Mechanical Life | 40,000 Cycles | |
| Electrical Life | 40,000 Cycles | |
| Operating Force | - | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | ES03MSABE | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
ES03MSABE is in stock for immediate shipping now. We are the distributor of C&K Components all series components. The condition of ES03MSABE is new and unused, you can buy ES03MSABE C&K Components with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for ES03MSABE.
