| Manufacturer Part Number: | ERA.00.250.CTL |
|---|---|
| Manufacturer: | LEMO |
| Product Category: | Coaxial Connectors (RF) |
| Available Quantity: | 9508 Pieces |
| Unit Price: | Quote by Email |

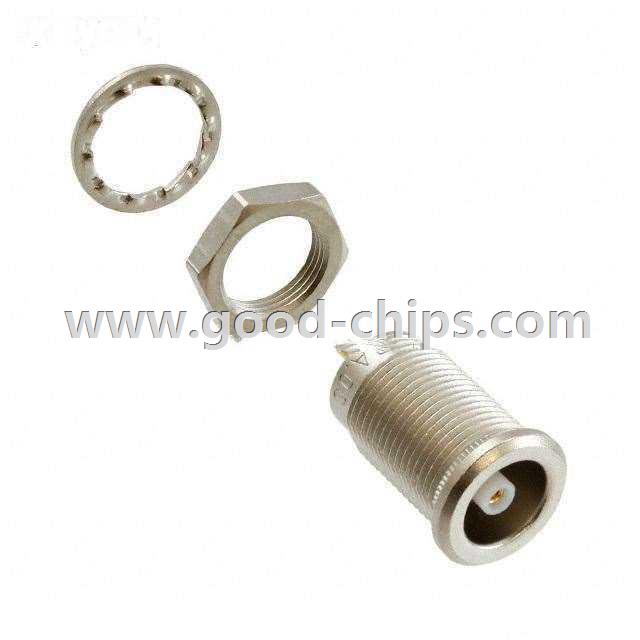

| Description: | NIM-CAMAC CD/N 549 Connector Receptacle, Female Socket 50 Ohm Panel Mount, Bulkhead - Rear Side Nut Solder Cup |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | ERA.00.250.CTL Datasheet |
| Internal Part Number | 898-ERA.00.250.CTL | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Online Catalog | NIM-CAMAC CD/N 0.25 Series | |
| Category | Connectors, Interconnects | |
| Family | Coaxial Connectors (RF) | |
| Manufacturer | LEMO | |
| Series | 00 | |
| Packaging | Bulk | |
| Part Status | Active | |
| Connector Style | NIM-CAMAC CD/N 549 | |
| Connector Type | Receptacle, Female Socket | |
| Contact Termination | Solder Cup | |
| Shield Termination | Solder | |
| Impedance | 50 Ohm | |
| Mounting Type | Panel Mount, Bulkhead - Rear Side Nut | |
| Cable Group | - | |
| Fastening Type | Push-Pull | |
| Frequency - Max | - | |
| Features | - | |
| Housing Color | Silver | |
| Ingress Protection | IP50 - Dust Protected | |
| Body Material | Brass | |
| Body Finish | Chrome | |
| Center Contact Material | Bronze | |
| Center Contact Plating | Gold | |
| Dielectric Material | Polytetrafluoroethylene (PTFE) | |
| Voltage Rating | 700V | |
| Operating Temperature | -55°C ~ 260°C | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | ERA.00.250.CTL | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
ERA.00.250.CTL is in stock for immediate shipping now. We are the distributor of LEMO all series components. The condition of ERA.00.250.CTL is new and unused, you can buy ERA.00.250.CTL LEMO with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for ERA.00.250.CTL.
