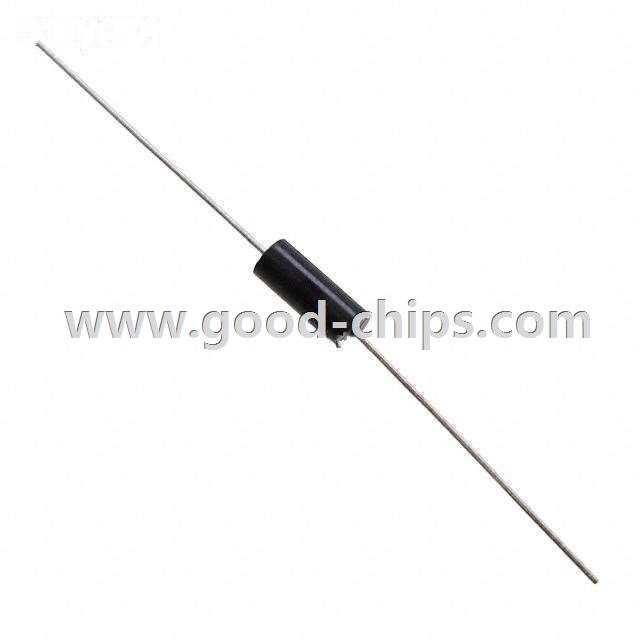

Manufacturer Part Number: | ER1641-221JS |
---|---|
Manufacturer: | API Delevan Inc. |
Product Category: | Fixed Inductors |
Available Quantity: | 9260 Pieces |
Unit Price: | Quote by Email |
Description: | 220nH Unshielded Inductor 1.1A 67 mOhm Max Axial |
Lead Free Status / RoHS Status: | Contains lead / RoHS non-compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | ER1641-221JS Datasheet |
Internal Part Number | 898-ER1641-221JS | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Online Catalog | Military, MIL-PRF-39010/01, ER1641 Series | |
Category | Inductors, Coils, Chokes | |
Family | Fixed Inductors | |
Manufacturer | API Delevan Inc. | |
Series | Military, MIL-PRF-39010/01, ER1641 | |
Packaging | Tape & Reel (TR) | |
Part Status | Active | |
Type | - | |
Material - Core | Phenolic | |
Inductance | 220nH | |
Tolerance | ±5% | |
Current Rating | 1.1A | |
Current - Saturation | - | |
Shielding | Unshielded | |
DC Resistance (DCR) | 67 mOhm Max | |
Q @ Freq | 49 @ 25MHz | |
Frequency - Self Resonant | 250MHz | |
Ratings | - | |
Operating Temperature | -55°C ~ 105°C | |
Frequency - Test | 25MHz | |
Mounting Type | Through Hole | |
Package / Case | Axial | |
Size / Dimension | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | |
Height - Seated (Max) | - | |
Standard Package | 250 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | ER1641-221JS | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
ER1641-221JS is in stock for immediate shipping now. We are the distributor of API Delevan Inc. all series components. The condition of ER1641-221JS is new and unused, you can buy ER1641-221JS API Delevan Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for ER1641-221JS.
