Manufacturer Part Number: | EPM570M100C5N |
---|---|
Manufacturer: | Altera |
Product Category: | Embedded - CPLDs (Complex Programmable Logic Devices) |
Available Quantity: | 9703 Pieces |
Unit Price: | Quote by Email |
Description: | IC CPLD 440MC 5.4NS 100MBGA |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 3 (168 Hours) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | EPM570M100C5N Datasheet |
Internal Part Number | 898-EPM570M100C5N | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
EDA / CAD Models | Download from Accelerated Designs | |
Online Catalog | MAX® II | |
Category | Integrated Circuits (ICs) | |
Family | Embedded - CPLDs (Complex Programmable Logic Devices) | |
Manufacturer | Altera | |
Series | MAX® II | |
Packaging | Tray | |
Part Status | Active | |
Programmable Type | In System Programmable | |
Delay Time tpd(1) Max | 5.4ns | |
Voltage Supply - Internal | 2.5V, 3.3V | |
Number of Logic Elements/Blocks | 570 | |
Number of Macrocells | 440 | |
Number of Gates | - | |
Number of I/O | 76 | |
Operating Temperature | 0°C ~ 85°C (TJ) | |
Mounting Type | Surface Mount | |

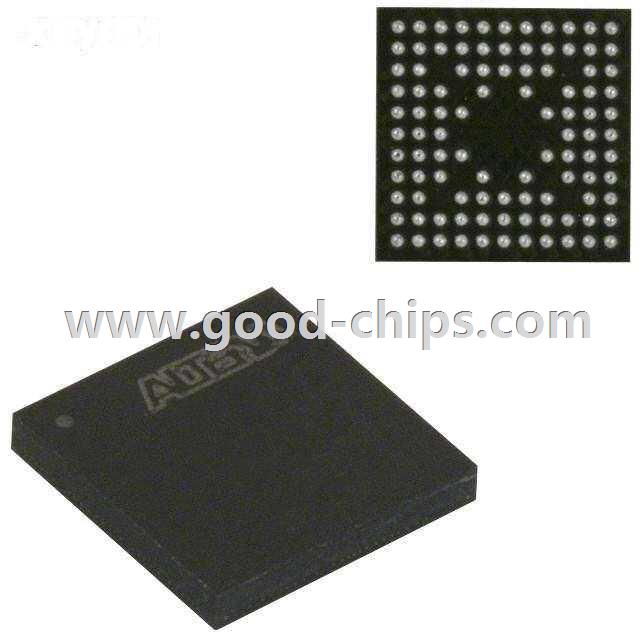

Package / Case | 100-TFBGA | |
Supplier Device Package | 100-MBGA (6x6) | |
Standard Package | 429 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | EPM570M100C5N | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
EPM570M100C5N is in stock for immediate shipping now. We are the distributor of Altera all series components. The condition of EPM570M100C5N is new and unused, you can buy EPM570M100C5N Altera with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for EPM570M100C5N.
