| Manufacturer Part Number: | EPC9201 |
|---|---|
| Manufacturer: | EPC |
| Product Category: | Evaluation and Demonstration Boards and Kits |
| Available Quantity: | 9107 Pieces |
| Unit Price: | Quote by Email |

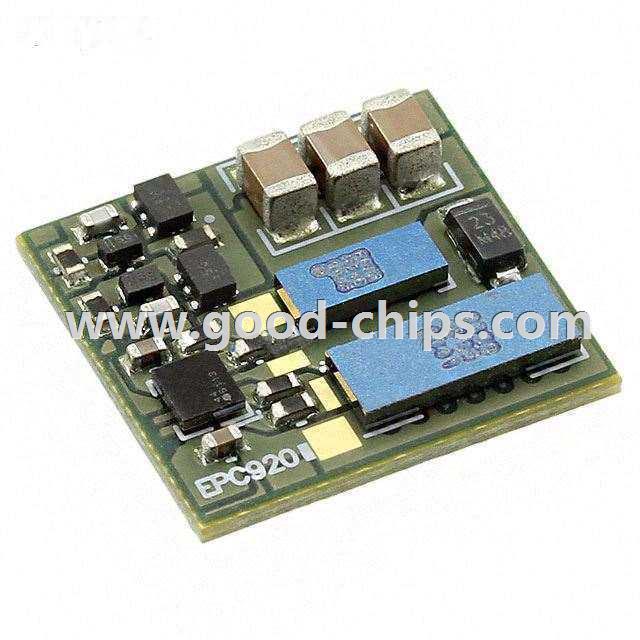

| Description: | EPC2015 eGaN® Series Power Management, Half H-Bridge Driver (External FET) Evaluation Board |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | EPC9201 Datasheet |
| Internal Part Number | 898-EPC9201 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Mfg Application Notes | Assembling eGaN® FETs Die Attach Procedure Die Removal Procedure Using eGaN® FETs | |
| Design Resources | EPC9201,3 Schematic EPC9201,3 Gerber Files EPC9201 Bill of Materials Development Tool Selector | |
| Featured Product | EPC9201 GaN Half-Bridge Eval Board | |
| Online Catalog | EPC2015 and EPC2023 Development Board | |
| Category | Programmers, Development Systems | |
| Family | Evaluation and Demonstration Boards and Kits | |
| Manufacturer | EPC | |
| Series | eGaN® | |
| Part Status | Active | |
| Main Purpose | Power Management, Half H-Bridge Driver (External FET) | |
| Embedded | No | |
| Utilized IC / Part | EPC2015 | |
| Primary Attributes | 30V, 40A Max Output GaNFET Capability | |
| Secondary Attributes | GaNFET Driver Circuit Uses 4.5V ~ 5V | |
| Supplied Contents | Board | |
| Standard Package | 50 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | EPC9201 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
EPC9201 is in stock for immediate shipping now. We are the distributor of EPC all series components. The condition of EPC9201 is new and unused, you can buy EPC9201 EPC with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for EPC9201.
