| Manufacturer Part Number: | EPC9118 |
|---|---|
| Manufacturer: | EPC |
| Product Category: | Evaluation Boards - DC/DC & AC/DC (Off-Line) SMPS |
| Available Quantity: | 9023 Pieces |
| Unit Price: | Quote by Email |

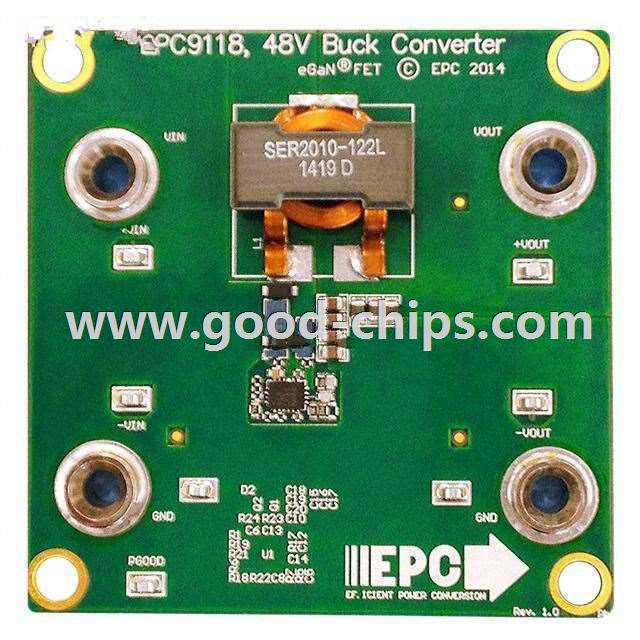

| Description: | EPC2001, EPC2021 eGaN® DC/DC, Step Down 1, Non-Isolated Outputs Evaluation Board |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | EPC9118 Datasheet |
| Internal Part Number | 898-EPC9118 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Mfg Application Notes | Assembling eGaN® FETs Die Attach Procedure Die Removal Procedure Using eGaN® FETs | |
| Design Resources | EPC9118 Schematic EPC9118 Gerber File EPC9118 Bill of Materials Development Tool Selector | |
| Featured Product | EPC9118 Demonstration Board | |
| Online Catalog | EPC2001/EPC2021 Demonstration Board | |
| Category | Programmers, Development Systems | |
| Family | Evaluation Boards - DC/DC & AC/DC (Off-Line) SMPS | |
| Manufacturer | EPC | |
| Series | eGaN® | |
| Part Status | Active | |
| Main Purpose | DC/DC, Step Down | |
| Outputs and Type | 1, Non-Isolated | |
| Power - Output | - | |
| Voltage - Output | 5V | |
| Current - Output | 20A | |
| Voltage - Input | 30 V ~ 60 V | |
| Regulator Topology | Buck | |
| Frequency - Switching | 400kHz | |
| Board Type | Fully Populated | |
| Supplied Contents | Board | |
| Utilized IC / Part | EPC2001, EPC2021 | |
| Standard Package | 60 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | EPC9118 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
EPC9118 is in stock for immediate shipping now. We are the distributor of EPC all series components. The condition of EPC9118 is new and unused, you can buy EPC9118 EPC with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for EPC9118.
