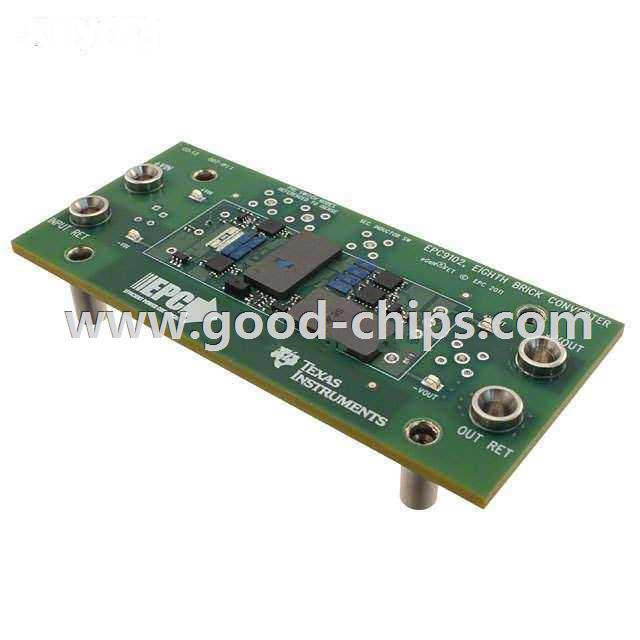

| Manufacturer Part Number: | EPC9102 |
|---|---|
| Manufacturer: | EPC |
| Product Category: | Evaluation Boards - DC/DC & AC/DC (Off-Line) SMPS |
| Available Quantity: | 9039 Pieces |
| Unit Price: | Quote by Email |
| Description: | EPC2001 eGaN® DC/DC, Step Down 1, Isolated Outputs Evaluation Board |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | EPC9102 Datasheet |
| Internal Part Number | 898-EPC9102 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | Driving eGaN FETs with LM5113 | |
| Video File | EPC eGaN FETs -- Another Geek Moment | DigiKey | |
| Design Resources | EPC9102 Schematic EPC9102 Bill of Materials EPC9102 Gerber Files Development Tool Selector | |
| Featured Product | EPC Low Voltage eGaN® FETs | |
| Reference Design Library | EPC9102: 12V @ 8 ~ 17A, 48V in | |
| Online Catalog | EPC2001 Evaluation Board | |
| Category | Programmers, Development Systems | |
| Family | Evaluation Boards - DC/DC & AC/DC (Off-Line) SMPS | |
| Manufacturer | EPC | |
| Series | eGaN® | |
| Part Status | Active | |
| Main Purpose | DC/DC, Step Down | |
| Outputs and Type | 1, Isolated | |
| Power - Output | - | |
| Voltage - Output | 12V | |
| Current - Output | 8A | |
| Voltage - Input | 36 V ~ 60 V | |
| Regulator Topology | Buck | |
| Frequency - Switching | 375kHz | |
| Board Type | Fully Populated | |
| Supplied Contents | Board | |
| Utilized IC / Part | EPC2001 | |
| Standard Package | 40 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | EPC9102 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
EPC9102 is in stock for immediate shipping now. We are the distributor of EPC all series components. The condition of EPC9102 is new and unused, you can buy EPC9102 EPC with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for EPC9102.
