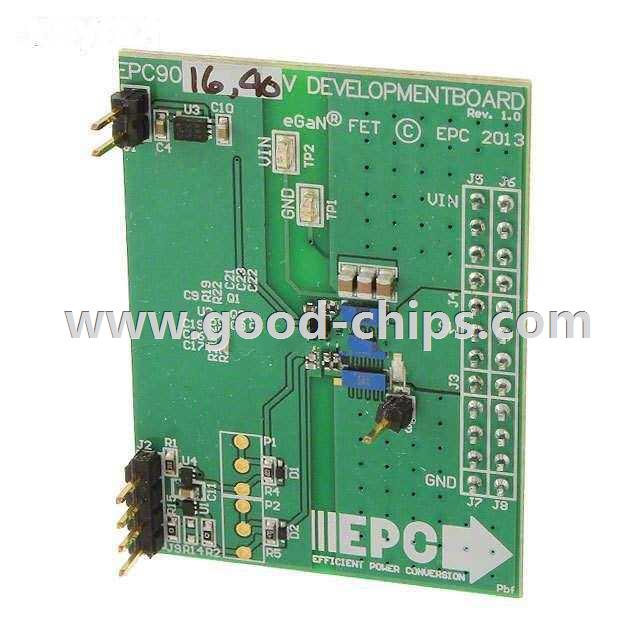

| Manufacturer Part Number: | EPC9016 |
|---|---|
| Manufacturer: | EPC |
| Product Category: | Evaluation and Demonstration Boards and Kits |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | EPC2015 eGaN® Series Power Management, Half H-Bridge Driver (External FET) Evaluation Board |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | EPC9016 Datasheet |
| Internal Part Number | 898-EPC9016 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Design Resources | EPC9016 Gerber Files EPC9016 Schematic EPC9016 Bill of Materials Development Tool Selector | |
| Featured Product | 9016 and 9017 Development Boards | |
| Category | Programmers, Development Systems | |
| Family | Evaluation and Demonstration Boards and Kits | |
| Manufacturer | EPC | |
| Series | eGaN® | |
| Part Status | Active | |
| Main Purpose | Power Management, Half H-Bridge Driver (External FET) | |
| Embedded | No | |
| Utilized IC / Part | EPC2015 | |
| Primary Attributes | 40V, 25A Max Output GaNFET Capability | |
| Secondary Attributes | GaNFET Driver Circuit Uses 7V ~ 12V | |
| Supplied Contents | Board | |
| Standard Package | 40 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | EPC9016 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
EPC9016 is in stock for immediate shipping now. We are the distributor of EPC all series components. The condition of EPC9016 is new and unused, you can buy EPC9016 EPC with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for EPC9016.
