Manufacturer Part Number: | EPC8009 |
---|---|
Manufacturer: | EPC |
Product Category: | Transistors - FETs, MOSFETs - Single |
Available Quantity: | 14010 Pieces |
Unit Price: | Quote by Email |

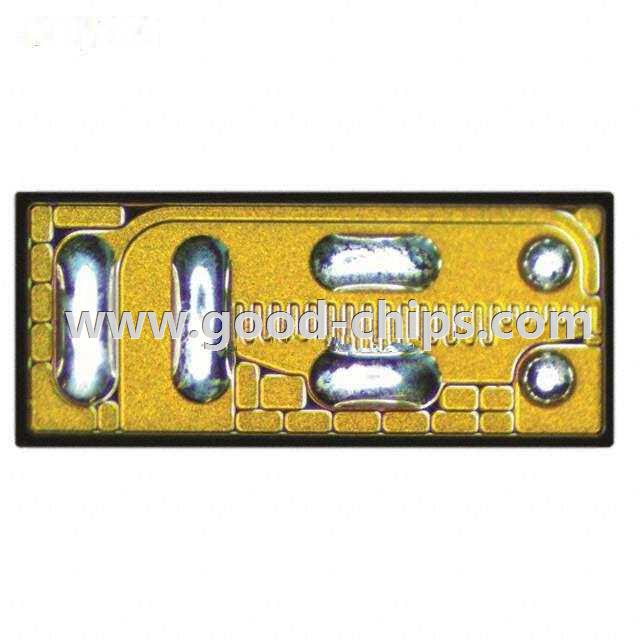

Description: | TRANS GAN 65V 2.7A BUMPED DIE |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | EPC8009 Datasheet |
Internal Part Number | 898-EPC8009 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Mfg Application Notes | eGaN FETs for Multi-Megahertz Hard Switching Applications Assembling eGaN® FETs Die Attach Procedure Die Removal Procedure | |
Online Catalog | N-Channel Standard FETs | |
Category | Discrete Semiconductor Products | |
Family | Transistors - FETs, MOSFETs - Single | |
Manufacturer | EPC | |
Series | eGaN® | |
Packaging | Tape & Reel (TR) | |
Part Status | Active | |
FET Type | GaNFET N-Channel, Gallium Nitride | |
FET Feature | Standard | |
Drain to Source Voltage (Vdss) | 65V | |
Current - Continuous Drain (Id) @ 25°C | 2.7A (Ta) | |
Rds On (Max) @ Id, Vgs | 130 mOhm @ 500mA, 5V | |
Vgs(th) (Max) @ Id | 2.5V @ 250µA | |
Gate Charge (Qg) @ Vgs | 0.45nC @ 5V | |
Input Capacitance (Ciss) @ Vds | 52pF @ 32.5V | |
Power - Max | - | |
Operating Temperature | -40°C ~ 150°C (TJ) | |
Mounting Type | Surface Mount | |
Package / Case | Die | |
Supplier Device Package | Die | |
Standard Package | 2,500 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | EPC8009 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
EPC8009 is in stock for immediate shipping now. We are the distributor of EPC all series components. The condition of EPC8009 is new and unused, you can buy EPC8009 EPC with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for EPC8009.
