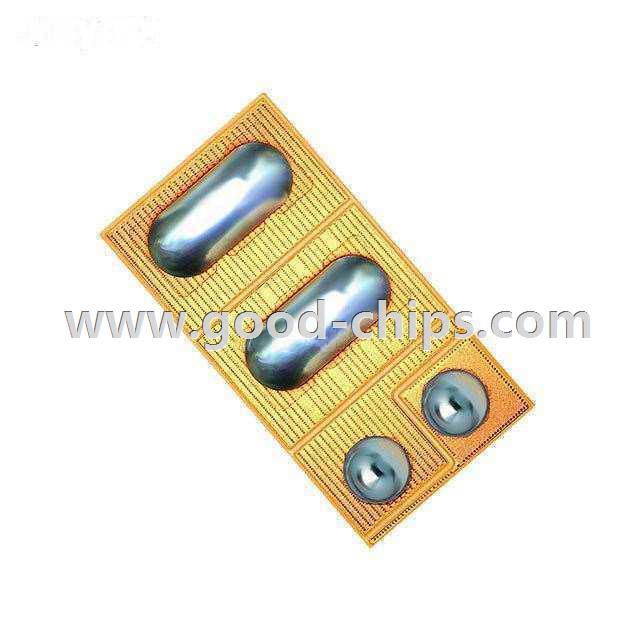

EPC2012C

EPC2012C
Manufacturer Part Number:EPC2012C
Manufacturer:
Product Category:Transistors - FETs, MOSFETs - Single
Available Quantity:10010 Pieces
Unit Price:Quote by Email
Description:TRANS GAN 200V 5A BUMPED DIE
Lead Free Status / RoHS Status:Lead free / RoHS Compliant
Moisture Sensitivity Level (MSL):1 (Unlimited)
Production Status (Lifecycle):In Production
Delivery Time:1-2 Days
Date Code (D/C):New
Datasheet Download: EPC2012C Datasheet
EPC2012C´s Parameters
Internal Part Number898-EPC2012C
Manufacturer Lead time6-8 weeks
ConditionNew & Unused, Original Sealed
Mfg Application NotesSecond Generation eGaN® FETs
Assembling eGaN® FETs
Die Attach Procedure
Die Removal Procedure
Using eGaN® FETs
Featured ProductEPC Low Voltage eGaN® FETs
EPC9052/53/54 Development Boards
Online Catalog N-Channel Standard FETs
CategoryDiscrete Semiconductor Products
FamilyTransistors - FETs, MOSFETs - Single
ManufacturerEPC
SerieseGaN®
PackagingTape & Reel (TR)
Part StatusActive
FET TypeGaNFET N-Channel, Gallium Nitride
FET FeatureStandard
Drain to Source Voltage (Vdss)200V
Current - Continuous Drain (Id) @ 25°C5A (Ta)
Rds On (Max) @ Id, Vgs100 mOhm @ 3A, 5V
Vgs(th) (Max) @ Id2.5V @ 1mA
Gate Charge (Qg) @ Vgs1.3nC @ 5V
Input Capacitance (Ciss) @ Vds140pF @ 100V
Power - Max-
Operating Temperature-40°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Package / CaseDie
Supplier Device PackageDie Outline (4-Solder Bar)
Standard Package 1,000
Weight0.001 KG
ApplicationEmail for details
Replacement PartEPC2012C
Country of OriginUSA / JAPAN / Philippines / Malaysia
MOQ1 Piece
Picture / Image / PhotoSend via email

EPC2012C is in stock for immediate shipping now. We are the distributor of EPC all series components. The condition of EPC2012C is new and unused, you can buy EPC2012C EPC with us at a very low price and quick delivery.

Please kindly send us an email if you have any demands for EPC2012C.
