| Manufacturer Part Number: | EPA240050-P5R-SZ |
|---|---|
| Manufacturer: | CUI Inc. |
| Product Category: | AC AC Wall Adapters |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |

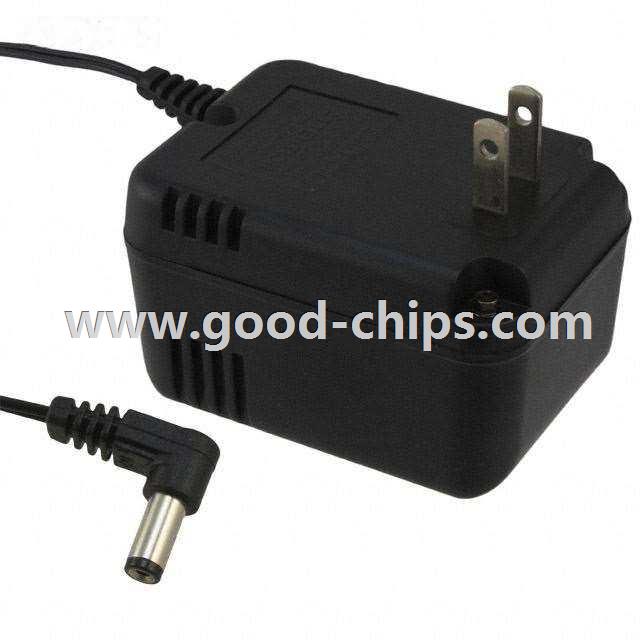

| Description: | 24VAC 500mA AC/AC External Wall Mount (Class II) Adapter Fixed Blade Input |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | EPA240050-P5R-SZ Datasheet |
| Internal Part Number | 898-EPA240050-P5R-SZ | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | EMI Regulations and Mitigation Considerations for Switching Power Supplies Reliability Considerations for Power Supplies Power Supply Safety Standards, Agencies and Marks Energy Efficiency Standards for External Power Supplies | |
| RoHS Information | EPA240050-P5R-SZ Cert of Compliance | |
| PCN Obsolescence/ EOL | Level V Multiple Devices 13/Aug/2015 | |
| Category | Power Supplies - External/Internal (Off-Board) | |
| Family | AC AC Wall Adapters | |
| Manufacturer | CUI Inc. | |
| Series | EPA | |
| Part Status | Obsolete | |
| Region Utilized | North America | |
| Form | Wall Mount (Class II) | |
| Input Type | Fixed Blade | |
| Voltage - Input | 120VAC | |
| Voltage - Output | 24VAC | |
| Current - Output (Max) | 500mA | |
| Power (Watts) | 12W | |
| No Load Power Consumption | 500mW (Max) | |
| Applications | ITE (Commercial) | |
| Efficiency | Level IV | |
| Operating Temperature | - | |
| Output Connector | Barrel Plug R/A, 2.1mm I.D. x 5.5mm O.D. x 12.0mm | |
| Size / Dimension | 1.93" L x 2.31" W x 3.21" H (49.1mm x 58.7mm x 81.6mm) | |
| Approvals | cULus | |
| Power (Watts) - Max | 12W | |
| Input Connector | NEMA 1-15P | |
| Cord Length | 72" (1.83m) | |
| Standard Package | 520 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | EPA240050-P5R-SZ | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
EPA240050-P5R-SZ is in stock for immediate shipping now. We are the distributor of CUI Inc. all series components. The condition of EPA240050-P5R-SZ is new and unused, you can buy EPA240050-P5R-SZ CUI Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for EPA240050-P5R-SZ.
