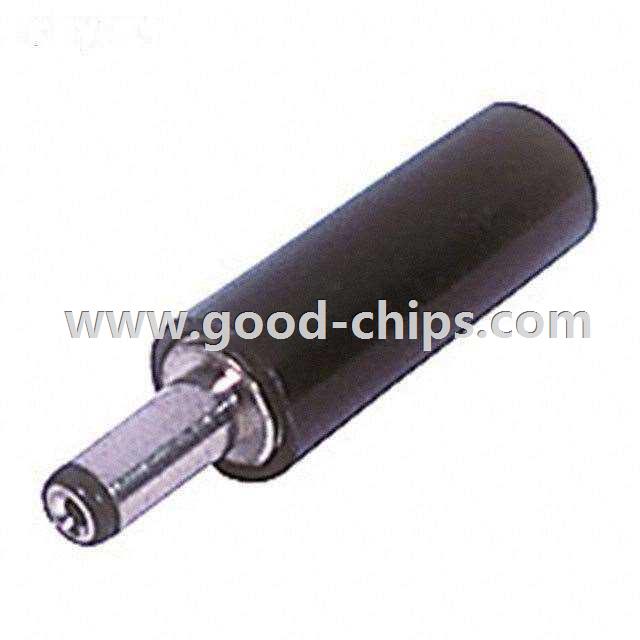

EP505A

EP505A
Manufacturer Part Number:EP505A
Manufacturer:
Product Category:Barrel - Power Connectors
Available Quantity:9010 Pieces
Unit Price:Quote by Email
Description:DC PLUG 1MM MOLDED STRAIN RELIEF
Lead Free Status / RoHS Status:Lead free / RoHS Compliant
Moisture Sensitivity Level (MSL):1 (Unlimited)
Production Status (Lifecycle):In Production
Delivery Time:1-2 Days
Date Code (D/C):New
Datasheet Download: EP505A Datasheet
EP505A´s Parameters
Internal Part Number898-EP505A
Manufacturer Lead time6-8 weeks
ConditionNew & Unused, Original Sealed
CategoryConnectors, Interconnects
FamilyBarrel - Power Connectors
ManufacturerMPD (Memory Protection Devices)
Series-
PackagingBulk
Part StatusActive
Connector TypePlug
GenderFemale
Industry Recognized Mating Diameter1.05mm ID (0.041"), 3.50mm OD (0.138")
Actual Diameter0.039" (1.00mm ID), 0.150" (3.80mm OD)
Number of Positions/Contacts2 Conductors, 2 Contacts
Internal Switch(s)Does Not Contain Switch
Mounting TypeFree Hanging (In-Line)
Mounting Feature-
TerminationSolder
ShieldingUnshielded
FeaturesStrain Relief
Insulation ColorBlack
Voltage - Rated12VDC
Current Rating5A
Mating Length/Depth0.378" (9.60mm)
Contact Material - PlatingNickel
Body MaterialBrass
Operating Temperature-
Includes2 pcs - 1 Connector, 1 Handle
Standard Package 100
Weight0.001 KG
ApplicationEmail for details
Replacement PartEP505A
Country of OriginUSA / JAPAN / Philippines / Malaysia
MOQ1 Piece
Picture / Image / PhotoSend via email

EP505A is in stock for immediate shipping now. We are the distributor of MPD (Memory Protection Devices) all series components. The condition of EP505A is new and unused, you can buy EP505A MPD (Memory Protection Devices) with us at a very low price and quick delivery.

Please kindly send us an email if you have any demands for EP505A.
