| Manufacturer Part Number: | EP12FPD1AVBE |
|---|---|
| Manufacturer: | C&K Components |
| Product Category: | Pushbutton Switches |
| Available Quantity: | 9037 Pieces |
| Unit Price: | Quote by Email |

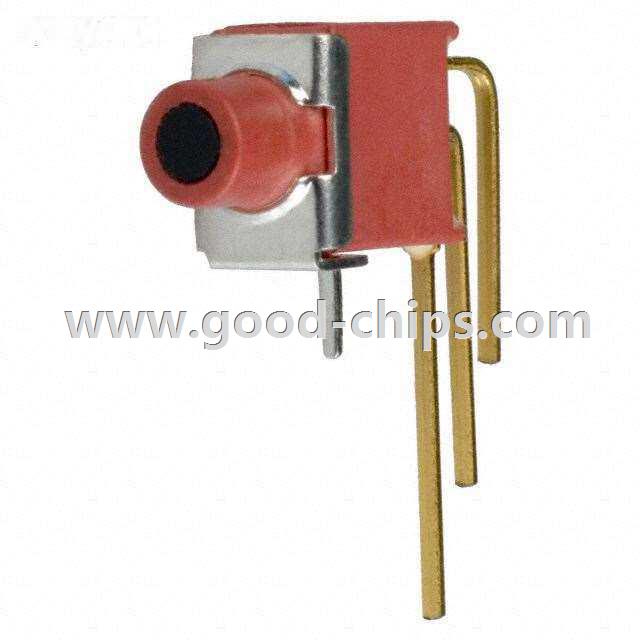

| Description: | Pushbutton Switch SPDT Standard Through Hole, Right Angle, Vertical |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | EP12FPD1AVBE Datasheet |
| Internal Part Number | 898-EP12FPD1AVBE | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | Sealed Switch – Part 1 Sealed Switch – Part 2 Sealed Switch – Part 3 Sealed Switch – Part 4 Introduction to Electromechanical Switches | |
| PCN Design/Specification | EP Series Material 01/Jul/2009 | |
| Online Catalog | EP Series | |
| Category | Switches | |
| Family | Pushbutton Switches | |
| Manufacturer | C&K Components | |
| Series | EP | |
| Packaging | Tray | |
| Part Status | Active | |
| Type | Standard | |
| Circuit | SPDT | |
| Switch Function | On-Mom | |
| Current Rating | 0.4VA (AC/DC) | |
| Voltage Rating - AC | 20V | |
| Voltage Rating - DC | 20V | |
| Actuator Type | Round, Plunger, Flush | |
| Color - Actuator/Cap | Black | |
| Illumination Type, Color | - | |
| Illumination Voltage (Nominal) | - | |
| Mounting Type | Through Hole, Right Angle, Vertical | |
| Termination Style | PC Pin | |
| Ingress Protection | IP57 - Dust Protected, Waterproof | |
| Features | Epoxy Sealed Terminals | |
| Panel Cutout Dimensions | - | |
| Operating Temperature | -30°C ~ 85°C | |
| Mechanical Life | - | |
| Electrical Life | 30,000 Cycles | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | EP12FPD1AVBE | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
EP12FPD1AVBE is in stock for immediate shipping now. We are the distributor of C&K Components all series components. The condition of EP12FPD1AVBE is new and unused, you can buy EP12FPD1AVBE C&K Components with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for EP12FPD1AVBE.
