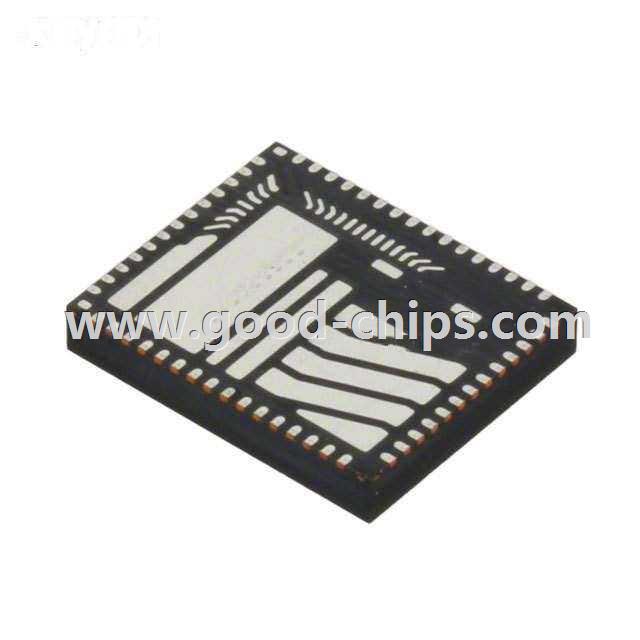

| Manufacturer Part Number: | EN5396QI |
|---|---|
| Manufacturer: | Altera |
| Product Category: | DC DC Converters |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | DC/DC CONVERTER 0.75-5.05V 45W |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 3 (168 Hours) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | EN5396QI Datasheet |
| Internal Part Number | 898-EN5396QI | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Featured Product | Enpirion® PowerSoC DC-DC Converters | |
| PCN Design/Specification | Solder paste 12/May/2016 | |
| PCN Packaging | Label Chg 15/Jan/2016 | |
| Online Catalog | Enpirion® 5300 Series | |
| Category | Power Supplies - Board Mount | |
| Family | DC DC Converters | |
| Manufacturer | Altera | |
| Series | Enpirion® 5300 | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Type | Non-Isolated PoL Module | |
| Number of Outputs | 1 | |
| Voltage - Input (Min) | 2.375V | |
| Voltage - Input (Max) | 5.5V | |
| Voltage - Output 1 | 0.75 ~ 5.05 V | |
| Voltage - Output 2 | - | |
| Voltage - Output 3 | - | |
| Current - Output (Max) | 9A | |
| Power (Watts) - Manufacture Series | - | |
| Voltage - Isolation | - | |
| Applications | ITE (Commercial) | |
| Features | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | |
| Mounting Type | Surface Mount | |
| Package / Case | 58-QFN | |
| Size / Dimension | 0.47" L x 0.39" W x 0.07" H (12.0mm x 10.0mm x 1.9mm) | |
| Operating Temperature | -40°C ~ 85°C | |
| Efficiency | 93% | |
| Power (Watts) - Max | - | |
| Standard Package | 250 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | EN5396QI | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
EN5396QI is in stock for immediate shipping now. We are the distributor of Altera all series components. The condition of EN5396QI is new and unused, you can buy EN5396QI Altera with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for EN5396QI.
