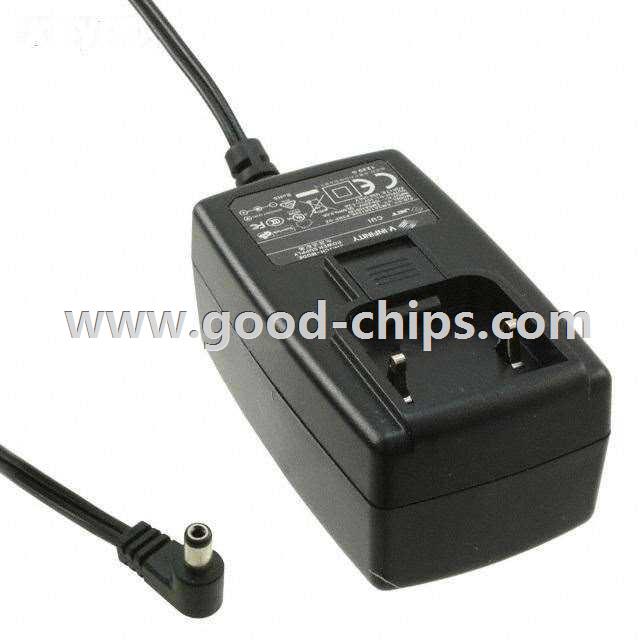

Manufacturer Part Number: | EMSA150120K-P5RP-SZ |
---|---|
Manufacturer: | CUI Inc. |
Product Category: | AC DC Desktop, Wall Adapters |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | 15V 18W AC/DC External Wall Mount Adapter Multi-Blade (Sold Separately) Input |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | Obsolete / Discontinued |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | EMSA150120K-P5RP-SZ Datasheet |
Internal Part Number | 898-EMSA150120K-P5RP-SZ | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Product Training Modules | EMI Regulations and Mitigation Considerations for Switching Power Supplies Reliability Considerations for Power Supplies Power Supply Safety Standards, Agencies and Marks | |
Video File | CUI's EMSA Series Power Adapter - Another Geek Moment | |
RoHS Information | EMSA 18W Cert of Compliance | |
PCN Obsolescence/ EOL | Level V Multiple Devices 13/Aug/2015 | |
Category | Power Supplies - External/Internal (Off-Board) | |
Family | AC DC Desktop, Wall Adapters | |
Manufacturer | CUI Inc. | |
Series | EMSA 18W | |
Part Status | Obsolete | |
Region Utilized | International | |
Form | Wall Mount | |
Input Type | Multi-Blade (Sold Separately) | |
Voltage - Input | 90 ~ 264 VAC | |
Voltage - Output | 15V | |
Current - Output (Max) | 1.2A | |
Power (Watts) | 18W | |
No Load Power Consumption | 300mW (Max) | |
Polarization | Positive Center | |
Applications | ITE (Commercial) | |
Efficiency | Level V | |
Operating Temperature | 0°C ~ 40°C | |
Output Connector | Barrel Plug R/A, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | |
Size / Dimension | 2.91" L x 1.71" W x 1.39" H (74.0mm x 43.5mm x 35.3mm) | |
Approvals | CCC, CE, cULus, GS, PSE | |
Power (Watts) - Max | 18W | |
Input Connector | Multi-Blade | |
Cord Length | 60.2" (1.53m) | |
Weight | 0.001 KG | |
Standard Package | 60 | |
Application | Email for details | |
Replacement Part | EMSA150120K-P5RP-SZ | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
EMSA150120K-P5RP-SZ is in stock for immediate shipping now. We are the distributor of CUI Inc. all series components. The condition of EMSA150120K-P5RP-SZ is new and unused, you can buy EMSA150120K-P5RP-SZ CUI Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for EMSA150120K-P5RP-SZ.
