| Manufacturer Part Number: | EMSA120250-P5RP-SZ |
|---|---|
| Manufacturer: | CUI Inc. |
| Product Category: | AC DC Desktop, Wall Adapters |
| Available Quantity: | 9022 Pieces |
| Unit Price: | Quote by Email |

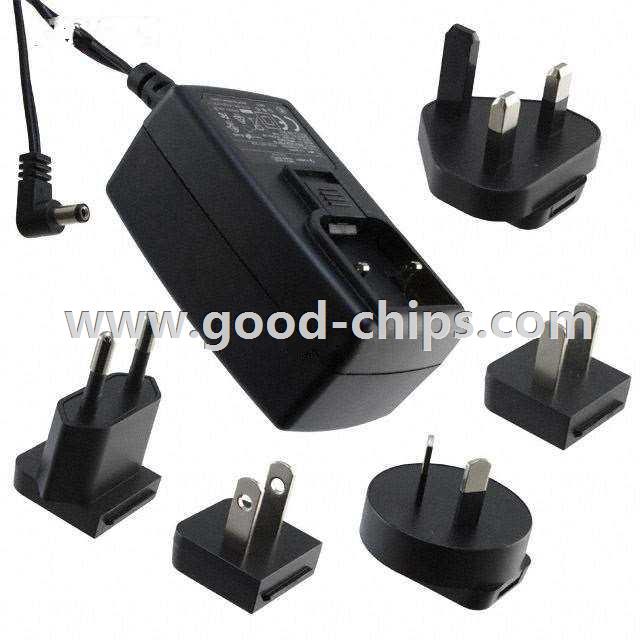

| Description: | 12V 30W AC/DC External Wall Mount Adapter Multi-Blade Input |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | EMSA120250-P5RP-SZ Datasheet |
| Internal Part Number | 898-EMSA120250-P5RP-SZ | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | EMI Regulations and Mitigation Considerations for Switching Power Supplies Reliability Considerations for Power Supplies Power Supply Safety Standards, Agencies and Marks | |
| Video File | CUI's EMSA Series Power Adapter - Another Geek Moment | |
| RoHS Information | EMSA 30W Series Cert of Compliance | |
| PCN Obsolescence/ EOL | Level V Multiple Devices 13/Aug/2015 | |
| Category | Power Supplies - External/Internal (Off-Board) | |
| Family | AC DC Desktop, Wall Adapters | |
| Manufacturer | CUI Inc. | |
| Series | EMSA 30W | |
| Part Status | Obsolete | |
| Region Utilized | International | |
| Form | Wall Mount | |
| Input Type | Multi-Blade | |
| Voltage - Input | 90 ~ 264 VAC | |
| Voltage - Output | 12V | |
| Current - Output (Max) | 2.5A | |
| Power (Watts) | 30W | |
| No Load Power Consumption | 300mW (Max) | |
| Polarization | Positive Center | |
| Applications | ITE (Commercial) | |
| Efficiency | Level V | |
| Operating Temperature | 0°C ~ 40°C | |
| Output Connector | Barrel Plug R/A, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | |
| Size / Dimension | 2.91" L x 1.71" W x 1.39" H (74.0mm x 43.5mm x 35.3mm) | |
| Approvals | CCC, CE, cULus, GS, PSE | |
| Power (Watts) - Max | 30W | |
| Input Connector | Multi-Blade | |
| Cord Length | 60.2" (1.53m) | |
| Weight | 0.001 KG | |
| Standard Package | 60 | |
| Application | Email for details | |
| Replacement Part | EMSA120250-P5RP-SZ | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
EMSA120250-P5RP-SZ is in stock for immediate shipping now. We are the distributor of CUI Inc. all series components. The condition of EMSA120250-P5RP-SZ is new and unused, you can buy EMSA120250-P5RP-SZ CUI Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for EMSA120250-P5RP-SZ.
