Manufacturer Part Number: | EMI4162MUTAG |
---|---|
Manufacturer: | ON Semiconductor |
Product Category: | Common Mode Chokes |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | 4 Line Common Mode Choke Surface Mount 100mA DCR 8 Ohm (Typ) |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | EMI4162MUTAG Datasheet |
Internal Part Number | 898-EMI4162MUTAG | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Category | Filters | |
Family | Common Mode Chokes | |
Manufacturer | ON Semiconductor | |
Series | EMI41 | |
Packaging | Tape & Reel (TR) | |
Part Status | Active | |
Filter Type | Signal Line | |
Number of Lines | 4 | |
Impedance @ Frequency | - | |
Inductance @ Frequency | - | |
Current Rating (Max) | 100mA | |
DC Resistance (DCR) (Max) | 8 Ohm (Typ) | |
Voltage Rating - DC | - | |
Voltage Rating - AC | - | |
Operating Temperature | -40°C ~ 85°C | |
Ratings | - | |
Approvals | - | |
Features | ESD | |
Mounting Type | Surface Mount | |
Size / Dimension | 0.098" L x 0.079" W (2.50mm x 2.00mm) | |
Height (Max) | 0.022" (0.55mm) | |

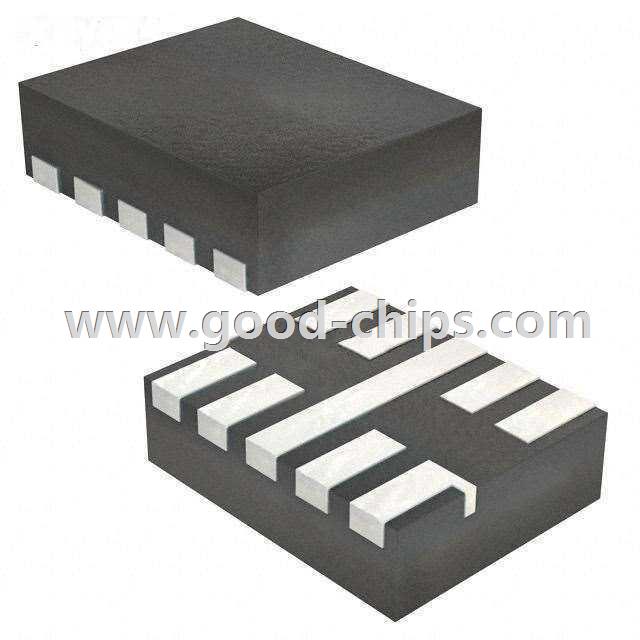

Package / Case | 10-UFDFN | |
Standard Package | 3,000 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | EMI4162MUTAG | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
EMI4162MUTAG is in stock for immediate shipping now. We are the distributor of ON Semiconductor all series components. The condition of EMI4162MUTAG is new and unused, you can buy EMI4162MUTAG ON Semiconductor with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for EMI4162MUTAG.
