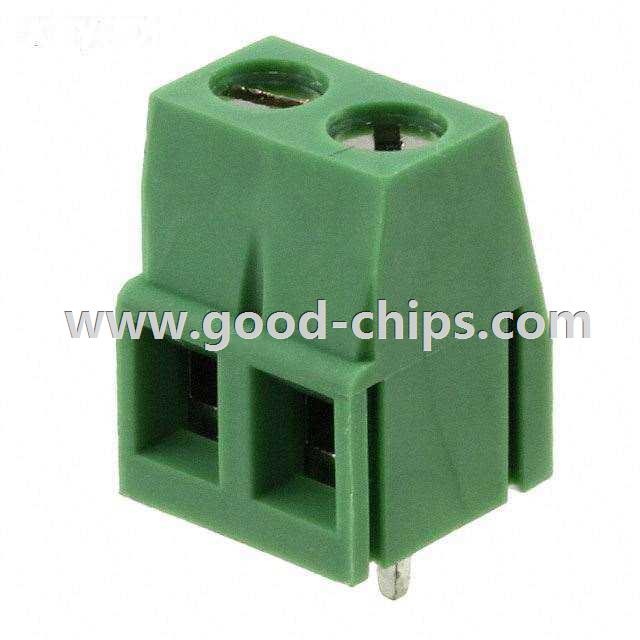

| Manufacturer Part Number: | EM250502V |
|---|---|
| Manufacturer: | Eaton |
| Product Category: | Terminal Blocks - Wire to Board |
| Available Quantity: | 12374 Pieces |
| Unit Price: | Quote by Email |
| Description: | 2 Position Wire to Board Terminal Block Horizontal with Board 0.200" (5.08mm) Through Hole |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | EM250502V Datasheet |
| Internal Part Number | 898-EM250502V | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Online Catalog | Euro-Mag EM2505 Series | |
| Category | Connectors, Interconnects | |
| Family | Terminal Blocks - Wire to Board | |
| Manufacturer | Eaton | |
| Series | Euro-Mag EM2505 | |
| Packaging | Bulk | |
| Part Status | Active | |
| Number of Levels | 1 | |
| Positions Per Level | 2 | |
| Pitch | 0.200" (5.08mm) | |
| Mating Orientation | Horizontal with Board | |
| Current | 16A | |
| Voltage | 300V | |
| Wire Gauge | 12-26 AWG | |
| Mounting Type | Through Hole | |
| Wire Termination | Screw - Rising Cage Clamp | |
| Features | Interlocking (Side) | |
| Color | - | |
| Operating Temperature | -40°C ~ 105°C | |
| Housing Material | Thermoplastic | |
| Contact Material - Plating | Brass - Tin Plated | |
| Clamp Material - Plating | - | |
| Screw Material - Plating | Steel - Zinc Plated | |
| Torque - Screw | 0.79 Nm (7.0 Lb-In) | |
| Screw Thread | M3 | |
| Standard Package | 100 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | EM250502V | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
EM250502V is in stock for immediate shipping now. We are the distributor of Eaton all series components. The condition of EM250502V is new and unused, you can buy EM250502V Eaton with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for EM250502V.
