Manufacturer Part Number: | ELUMOATHQ2C12 |
---|---|
Manufacturer: | C&K Components |
Product Category: | Pushbutton Switches |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |

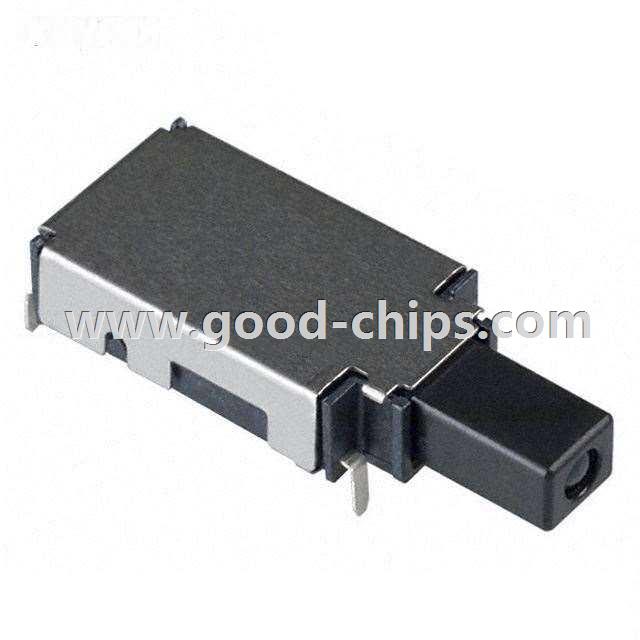

Description: | Pushbutton Switch SPDT Standard, Illuminated Through Hole, Right Angle |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | ELUMOATHQ2C12 Datasheet |
Internal Part Number | 898-ELUMOATHQ2C12 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Product Training Modules | ELUM™ Illuminated Pushbuttons Illuminated Switches Introduction to Electromechanical Switches | |
3D Model | ELUMOATHQxC12.stp ELUMOATHQxC12.pdf | |
Category | Switches | |
Family | Pushbutton Switches | |
Manufacturer | C&K Components | |
Series | ELUM™ | |
Packaging | Tray | |
Part Status | Active | |
Type | Standard, Illuminated | |
Circuit | SPDT | |
Switch Function | On-Mom | |
Current Rating | 250mA (DC) | |
Voltage Rating - AC | - | |
Voltage Rating - DC | 50V | |
Actuator Type | Rectangular, Button | |
Color - Actuator/Cap | Black | |
Illumination Type, Color | LED, Red/Green | |
Illumination Voltage (Nominal) | 2 VDC | |
Mounting Type | Through Hole, Right Angle | |
Termination Style | PC Pin | |
Ingress Protection | - | |
Features | - | |
Panel Cutout Dimensions | - | |
Operating Temperature | -40°C ~ 80°C | |
Mechanical Life | - | |
Electrical Life | - | |
Standard Package | 60 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | ELUMOATHQ2C12 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
ELUMOATHQ2C12 is in stock for immediate shipping now. We are the distributor of C&K Components all series components. The condition of ELUMOATHQ2C12 is new and unused, you can buy ELUMOATHQ2C12 C&K Components with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for ELUMOATHQ2C12.
