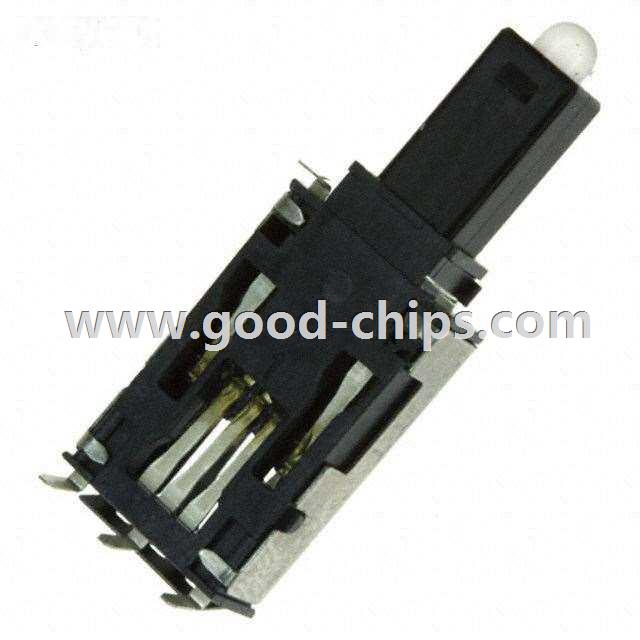

| Manufacturer Part Number: | ELUMEETHQ8C22 |
|---|---|
| Manufacturer: | C&K Components |
| Product Category: | Pushbutton Switches |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | Pushbutton Switch SPDT Standard, Illuminated Through Hole, Right Angle |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | ELUMEETHQ8C22 Datasheet |
| Internal Part Number | 898-ELUMEETHQ8C22 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | ELUM™ Illuminated Pushbuttons Illuminated Switches Introduction to Electromechanical Switches | |
| 3D Model | ELUMEETHQ2C22.stp ELUMEETHQxC22.pdf | |
| Category | Switches | |
| Family | Pushbutton Switches | |
| Manufacturer | C&K Components | |
| Series | ELUM™ | |
| Packaging | Tray | |
| Part Status | Active | |
| Type | Standard, Illuminated | |
| Circuit | SPDT | |
| Switch Function | On-On | |
| Current Rating | 250mA (DC) | |
| Voltage Rating - AC | - | |
| Voltage Rating - DC | 50V | |
| Actuator Type | Plunger for Cap | |
| Color - Actuator/Cap | Black | |
| Illumination Type, Color | LED, Amber/Green | |
| Illumination Voltage (Nominal) | 2 VDC | |
| Mounting Type | Through Hole, Right Angle | |
| Termination Style | PC Pin | |
| Ingress Protection | - | |
| Features | - | |
| Panel Cutout Dimensions | - | |
| Operating Temperature | -40°C ~ 80°C | |
| Mechanical Life | - | |
| Electrical Life | - | |
| Standard Package | 60 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | ELUMEETHQ8C22 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
ELUMEETHQ8C22 is in stock for immediate shipping now. We are the distributor of C&K Components all series components. The condition of ELUMEETHQ8C22 is new and unused, you can buy ELUMEETHQ8C22 C&K Components with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for ELUMEETHQ8C22.
