| Manufacturer Part Number: | ELJ-QE5N6DFA |
|---|---|
| Manufacturer: | Panasonic Electronic Components |
| Product Category: | Fixed Inductors |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |

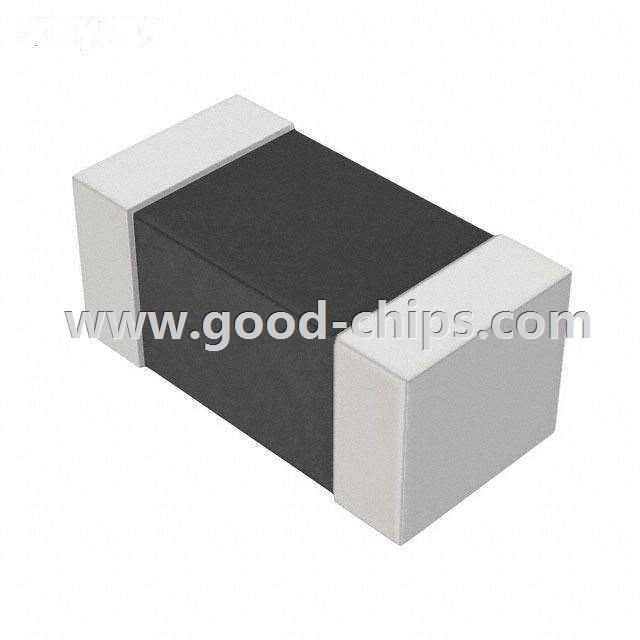

| Description: | 5.6nH Unshielded Multilayer Inductor 600mA 110 mOhm Max 0603 (1608 Metric) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | ELJ-QE5N6DFA Datasheet |
| Internal Part Number | 898-ELJ-QE5N6DFA | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Featured Product | Hot New Technologies | |
| PCN Obsolescence/ EOL | ELJx Series EOL ELJx Series Disc 19/Jun/2015 | |
| Category | Inductors, Coils, Chokes | |
| Family | Fixed Inductors | |
| Manufacturer | Panasonic Electronic Components | |
| Series | QE | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Obsolete | |
| Type | Multilayer | |
| Material - Core | Ceramic | |
| Inductance | 5.6nH | |
| Tolerance | ±0.3nH | |
| Current Rating | 600mA | |
| Current - Saturation | - | |
| Shielding | Unshielded | |
| DC Resistance (DCR) | 110 mOhm Max | |
| Q @ Freq | 15 @ 100MHz | |
| Frequency - Self Resonant | 6GHz | |
| Ratings | - | |
| Operating Temperature | -40°C ~ 85°C | |
| Frequency - Test | 100MHz | |
| Mounting Type | Surface Mount | |
| Package / Case | 0603 (1608 Metric) | |
| Size / Dimension | 0.063" L x 0.031" W (1.60mm x 0.80mm) | |
| Height - Seated (Max) | 0.031" (0.80mm) | |
| Standard Package | 3,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | ELJ-QE5N6DFA | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
ELJ-QE5N6DFA is in stock for immediate shipping now. We are the distributor of Panasonic Electronic Components all series components. The condition of ELJ-QE5N6DFA is new and unused, you can buy ELJ-QE5N6DFA Panasonic Electronic Components with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for ELJ-QE5N6DFA.
