Manufacturer Part Number: | ELFH09250E |
---|---|
Manufacturer: | Amphenol PCD |
Product Category: | Terminal Blocks - Headers, Plugs and Sockets |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |

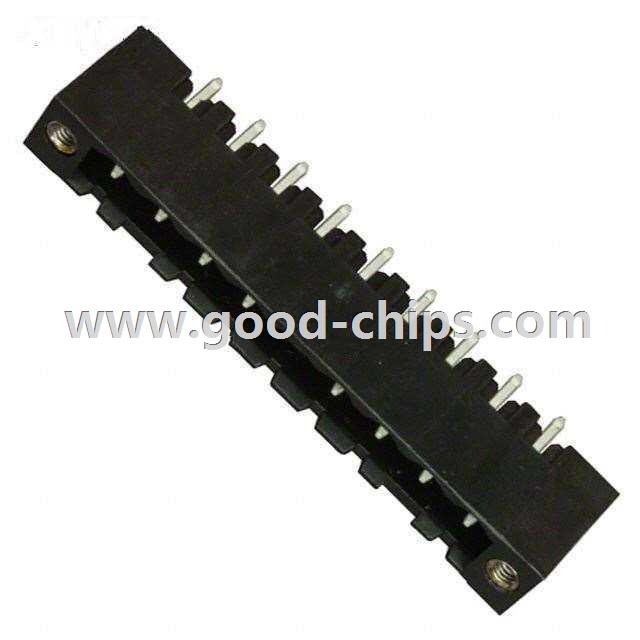

Description: | 9 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.200" (5.08mm) Vertical Through Hole |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | ELFH09250E Datasheet |
Internal Part Number | 898-ELFH09250E | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Online Catalog | ELF Series | |
Category | Connectors, Interconnects | |
Family | Terminal Blocks - Headers, Plugs and Sockets | |
Manufacturer | Amphenol PCD | |
Series | ELFH | |
Packaging | Bulk | |
Part Status | Active | |
Type | Header, Male Pins, Shrouded (4 Side) | |
Number of Positions | 9 | |
Positions Per Level | 9 | |
Number of Levels | 1 | |
Pitch | 0.200" (5.08mm) | |
Header Orientation | Vertical | |
Plug Wire Entry | - | |
Termination Style | Solder | |
Mounting Type | Through Hole | |
Current - IEC | - | |
Voltage - IEC | - | |
Current - UL | 15A | |
Voltage - UL | 300V | |
Wire Gauge or Range - AWG | - | |
Wire Gauge or Range - mm² | - | |
Color | Black | |
Operating Temperature | -40°C ~ 105°C | |
Contact Mating Finish | Tin | |
Features | Mating Flange | |
Standard Package | 100 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | ELFH09250E | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
ELFH09250E is in stock for immediate shipping now. We are the distributor of Amphenol PCD all series components. The condition of ELFH09250E is new and unused, you can buy ELFH09250E Amphenol PCD with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for ELFH09250E.
