ELFH09210

ELFH09210
Manufacturer Part Number:ELFH09210
Manufacturer:
Product Category:Terminal Blocks - Headers, Plugs and Sockets
Available Quantity:9210 Pieces
Unit Price:Quote by Email

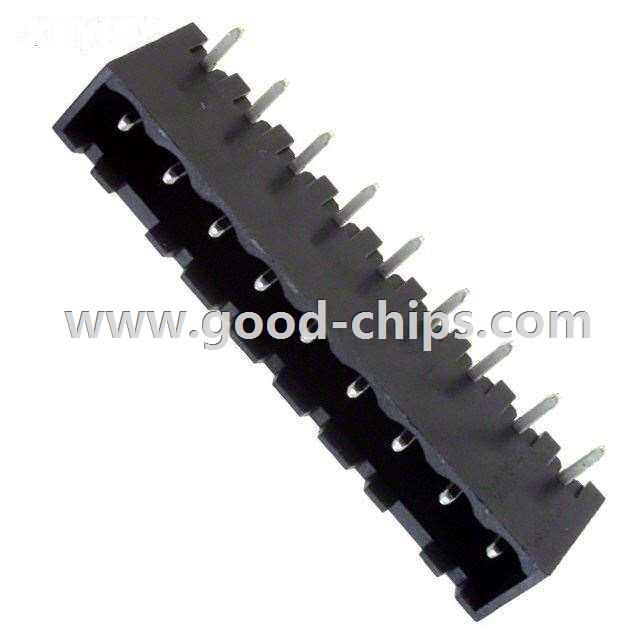

Description:9 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.200" (5.08mm) 90°, Right Angle Through Hole
Lead Free Status / RoHS Status:Lead free / RoHS Compliant
Moisture Sensitivity Level (MSL):
Production Status (Lifecycle):In Production
Delivery Time:1-2 Days
Date Code (D/C):New
Datasheet Download: ELFH09210 Datasheet
ELFH09210´s Parameters
Internal Part Number898-ELFH09210
Manufacturer Lead time6-8 weeks
ConditionNew & Unused, Original Sealed
Online Catalog ELF Series
CategoryConnectors, Interconnects
FamilyTerminal Blocks - Headers, Plugs and Sockets
ManufacturerAmphenol PCD
SeriesELFH
PackagingBulk
Part StatusActive
TypeHeader, Male Pins, Shrouded (4 Side)
Number of Positions9
Positions Per Level9
Number of Levels1
Pitch0.200" (5.08mm)
Header Orientation90°, Right Angle
Plug Wire Entry-
Termination StyleSolder
Mounting TypeThrough Hole
Current - IEC-
Voltage - IEC-
Current - UL15A
Voltage - UL300V
Wire Gauge or Range - AWG-
Wire Gauge or Range - mm²-
ColorBlack
Operating Temperature-40°C ~ 105°C
Contact Mating FinishTin
Features-
Standard Package 100
Weight0.001 KG
ApplicationEmail for details
Replacement PartELFH09210
Country of OriginUSA / JAPAN / Philippines / Malaysia
MOQ1 Piece
Picture / Image / PhotoSend via email

ELFH09210 is in stock for immediate shipping now. We are the distributor of Amphenol PCD all series components. The condition of ELFH09210 is new and unused, you can buy ELFH09210 Amphenol PCD with us at a very low price and quick delivery.

Please kindly send us an email if you have any demands for ELFH09210.
