Manufacturer Part Number: | ELFH09210J |
---|---|
Manufacturer: | Amphenol PCD |
Product Category: | Terminal Blocks - Headers, Plugs and Sockets |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |

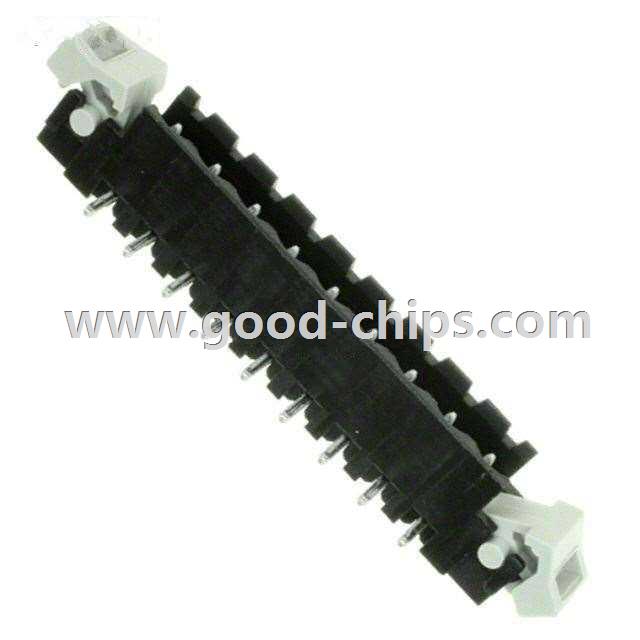

Description: | 9 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.200" (5.08mm) 90°, Right Angle Through Hole |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | ELFH09210J Datasheet |
Internal Part Number | 898-ELFH09210J | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Online Catalog | ELF Series | |
Category | Connectors, Interconnects | |
Family | Terminal Blocks - Headers, Plugs and Sockets | |
Manufacturer | Amphenol PCD | |
Series | ELFH | |
Packaging | Bulk | |
Part Status | Active | |
Type | Header, Male Pins, Shrouded (4 Side) | |
Number of Positions | 9 | |
Positions Per Level | 9 | |
Number of Levels | 1 | |
Pitch | 0.200" (5.08mm) | |
Header Orientation | 90°, Right Angle | |
Plug Wire Entry | - | |
Termination Style | Solder | |
Mounting Type | Through Hole | |
Current - IEC | - | |
Voltage - IEC | - | |
Current - UL | 15A | |
Voltage - UL | 300V | |
Wire Gauge or Range - AWG | - | |
Wire Gauge or Range - mm² | - | |
Color | Black | |
Operating Temperature | 105°C | |
Contact Mating Finish | Tin-Lead | |
Features | Ejectors | |
Standard Package | 100 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | ELFH09210J | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
ELFH09210J is in stock for immediate shipping now. We are the distributor of Amphenol PCD all series components. The condition of ELFH09210J is new and unused, you can buy ELFH09210J Amphenol PCD with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for ELFH09210J.
