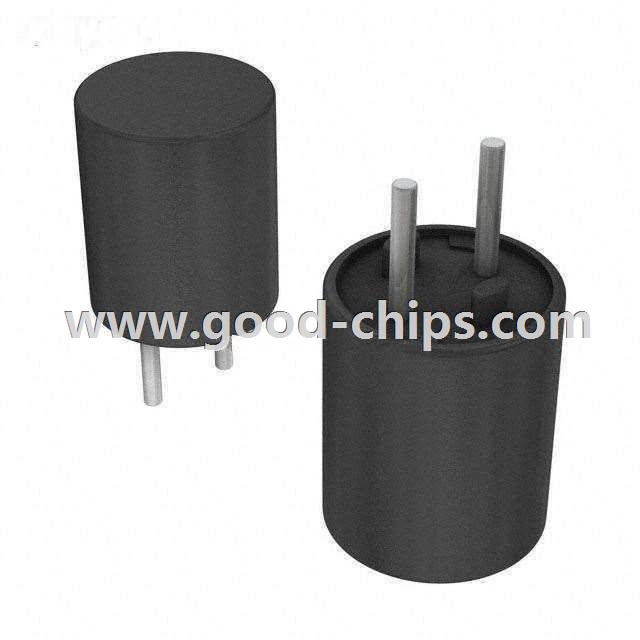

ELC-10E331L

ELC-10E331L
Manufacturer Part Number:ELC-10E331L
Manufacturer:
Product Category:Fixed Inductors
Available Quantity:9010 Pieces
Unit Price:Quote by Email
Description:330µH Shielded Wirewound Inductor 520mA 660 mOhm Radial
Lead Free Status / RoHS Status:Lead free / RoHS Compliant
Moisture Sensitivity Level (MSL):2 (1 Year)
Production Status (Lifecycle):In Production
Delivery Time:1-2 Days
Date Code (D/C):New
Datasheet Download: ELC-10E331L Datasheet
ELC-10E331L´s Parameters
Internal Part Number898-ELC-10E331L
Manufacturer Lead time6-8 weeks
ConditionNew & Unused, Original Sealed
CategoryInductors, Coils, Chokes
FamilyFixed Inductors
ManufacturerPanasonic Electronic Components
Series10E
PackagingBulk
Part StatusActive
TypeWirewound
Material - Core-
Inductance330µH
Tolerance±10%
Current Rating520mA
Current - Saturation-
ShieldingShielded
DC Resistance (DCR)660 mOhm
Q @ Freq-
Frequency - Self Resonant-
Ratings-
Operating Temperature-
Frequency - Test10kHz
Mounting TypeThrough Hole
Package / CaseRadial
Size / Dimension0.394" Dia (10.00mm)
Height - Seated (Max)0.512" (13.00mm)
Standard Package 500
Weight0.001 KG
ApplicationEmail for details
Replacement PartELC-10E331L
Country of OriginUSA / JAPAN / Philippines / Malaysia
MOQ1 Piece
Picture / Image / PhotoSend via email

ELC-10E331L is in stock for immediate shipping now. We are the distributor of Panasonic Electronic Components all series components. The condition of ELC-10E331L is new and unused, you can buy ELC-10E331L Panasonic Electronic Components with us at a very low price and quick delivery.

Please kindly send us an email if you have any demands for ELC-10E331L.
