| Manufacturer Part Number: | EL5824IRE |
|---|---|
| Manufacturer: | Intersil |
| Product Category: | Linear - Amplifiers - Video Amps and Modules |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | IC BUFFER 10XGAMMA 9.5MA 28TSSOP |
| Lead Free Status / RoHS Status: | Contains lead / RoHS non-compliant |
| Moisture Sensitivity Level (MSL): | 3 (168 Hours) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | EL5824IRE Datasheet |
| Internal Part Number | 898-EL5824IRE | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Category | Integrated Circuits (ICs) | |
| Family | Linear - Amplifiers - Video Amps and Modules | |
| Manufacturer | Intersil | |
| Series | - | |
| Packaging | Tube | |
| Part Status | Obsolete | |
| Applications | TFT-LCD Panels: Gamma Buffer, VCOM Driver | |
| Output Type | Rail-to-Rail | |
| Number of Circuits | 10 | |
| -3db Bandwidth | 12MHz | |
| Slew Rate | 15 V/µs | |
| Current - Supply | 9.5mA | |
| Current - Output / Channel | 140mA | |
| Voltage - Supply, Single/Dual (±) | 4.5 V ~ 16.5 V, ±2.25 V ~ 8.25 V | |
| Mounting Type | Surface Mount | |

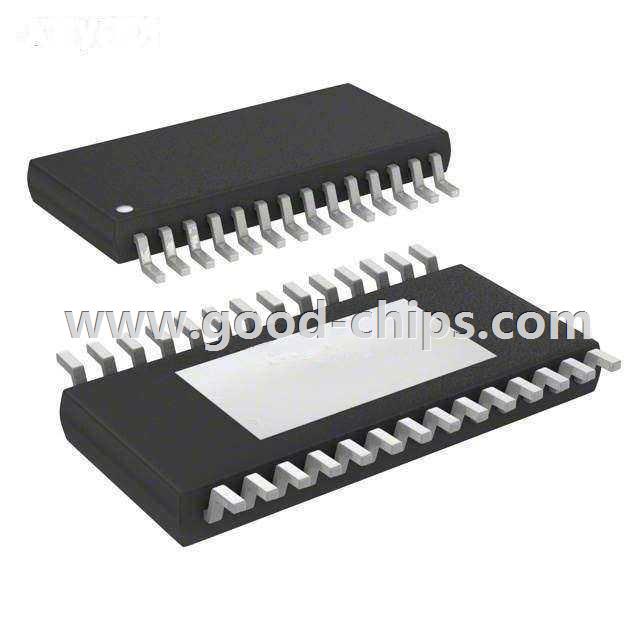

| Package / Case | 28-TSSOP (0.173", 4.40mm Width) Exposed Pad | |
| Supplier Device Package | 28-TSSOP-EP | |
| Standard Package | 50 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | EL5824IRE | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
EL5824IRE is in stock for immediate shipping now. We are the distributor of Intersil all series components. The condition of EL5824IRE is new and unused, you can buy EL5824IRE Intersil with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for EL5824IRE.
