| Manufacturer Part Number: | EK55 |
|---|---|
| Manufacturer: | Apex Microtechnology |
| Product Category: | Evaluation Boards - Op Amps |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |

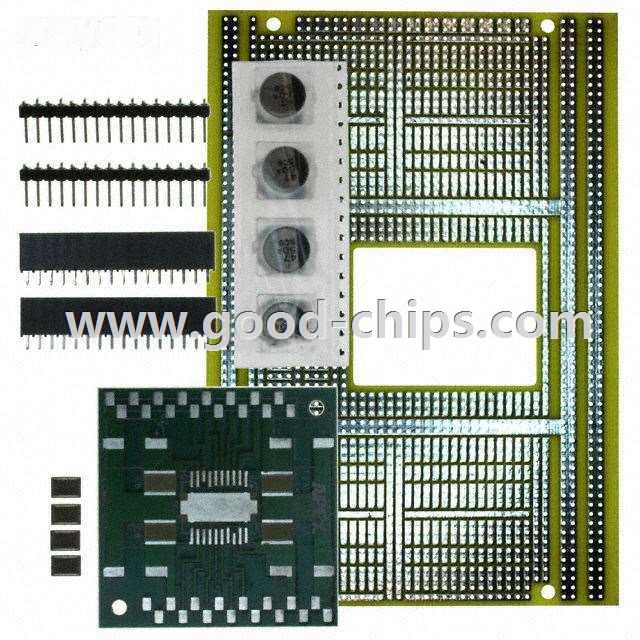

| Description: | PA62DK Apex Precision Power® Series 4 - Quad Channels per IC Power Amplifier Evaluation Board |
| Lead Free Status / RoHS Status: | Contains lead / RoHS non-compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | EK55 Datasheet |
| Internal Part Number | 898-EK55 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Design Resources | Development Tool Selector | |
| Category | Programmers, Development Systems | |
| Family | Evaluation Boards - Op Amps | |
| Manufacturer | Apex Microtechnology | |
| Series | Apex Precision Power® | |
| Part Status | Obsolete | |
| Channels per IC | 4 - Quad | |
| Amplifier Type | Power | |
| Output Type | Single-Ended | |
| Slew Rate | - | |
| -3db Bandwidth | - | |
| Current - Output / Channel | - | |
| Operating Temperature | - | |
| Current - Supply (Main IC) | - | |
| Voltage - Supply, Single/Dual (±) | - | |
| Board Type | Bare (Unpopulated) | |
| Supplied Contents | Board, Components, Heat Sink - for Assembly | |
| Utilized IC / Part | PA62DK | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | EK55 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
EK55 is in stock for immediate shipping now. We are the distributor of Apex Microtechnology all series components. The condition of EK55 is new and unused, you can buy EK55 Apex Microtechnology with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for EK55.
