Manufacturer Part Number: | EK27 |
---|---|
Manufacturer: | Apex Microtechnology |
Product Category: | Evaluation Boards - Op Amps |
Available Quantity: | 9015 Pieces |
Unit Price: | Quote by Email |

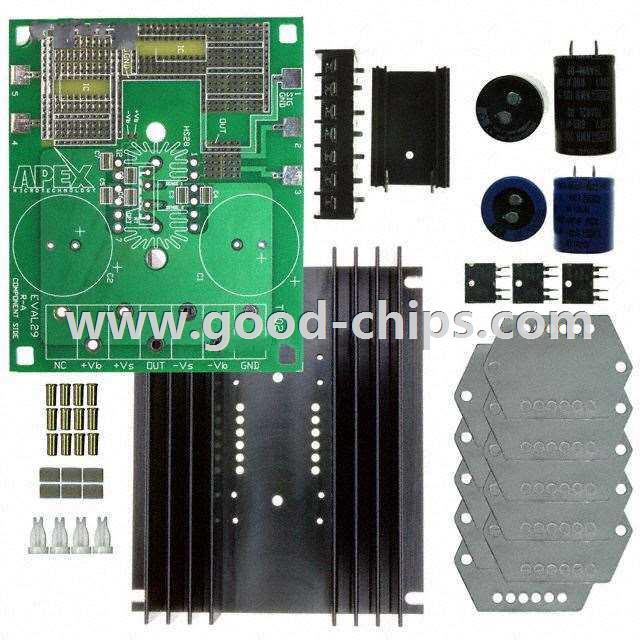

Description: | PA50, PA52 Apex Precision Power® Series 1 - Single Channels per IC Power Amplifier Evaluation Board |
Lead Free Status / RoHS Status: | Contains lead / RoHS non-compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | EK27 Datasheet |
Internal Part Number | 898-EK27 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Product Training Modules | Power Analog Portfolio | |
Design Resources | Development Tool Selector | |
Category | Programmers, Development Systems | |
Family | Evaluation Boards - Op Amps | |
Manufacturer | Apex Microtechnology | |
Series | Apex Precision Power® | |
Part Status | Active | |
Channels per IC | 1 - Single | |
Amplifier Type | Power | |
Output Type | Single-Ended | |
Slew Rate | - | |
-3db Bandwidth | - | |
Current - Output / Channel | - | |
Operating Temperature | - | |
Current - Supply (Main IC) | - | |
Voltage - Supply, Single/Dual (±) | - | |
Board Type | Bare (Unpopulated) | |
Supplied Contents | Board, Components, Heat Sink - for Assembly | |
Utilized IC / Part | PA50, PA52 | |
Standard Package | 1 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | EK27 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
EK27 is in stock for immediate shipping now. We are the distributor of Apex Microtechnology all series components. The condition of EK27 is new and unused, you can buy EK27 Apex Microtechnology with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for EK27.
