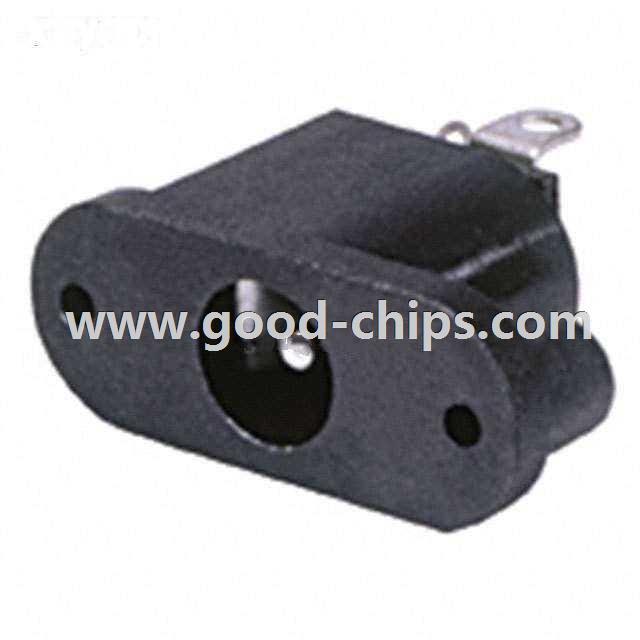

| Manufacturer Part Number: | EJ505A |
|---|---|
| Manufacturer: | MPD (Memory Protection Devices) |
| Product Category: | Barrel - Power Connectors |
| Available Quantity: | 9736 Pieces |
| Unit Price: | Quote by Email |
| Description: | DC JACK W/SOLDER LUGS PANEL MNT |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | EJ505A Datasheet |
| Internal Part Number | 898-EJ505A | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Featured Product | 2.1 mm x 5.5 mm or 2.5 mm x 5.5 mm DC Jacks | |
| Online Catalog | MPD (Memory Protection Devices) | |
| Category | Connectors, Interconnects | |
| Family | Barrel - Power Connectors | |
| Manufacturer | MPD (Memory Protection Devices) | |
| Series | - | |
| Packaging | Bulk | |
| Part Status | Active | |
| Connector Type | Jack | |
| Gender | Male | |
| Industry Recognized Mating Diameter | 2.10mm ID (0.083"), 5.50mm OD (0.217") | |
| Actual Diameter | - | |
| Number of Positions/Contacts | 2 Conductors, 3 Contacts | |
| Internal Switch(s) | Single Switch, Normally Closed | |
| Mounting Type | Panel Mount | |
| Mounting Feature | Flange | |
| Termination | Solder Eyelet(s) | |
| Shielding | Unshielded | |
| Features | - | |
| Insulation Color | - | |
| Voltage - Rated | 12VDC | |
| Current Rating | 5A | |
| Mating Length/Depth | - | |
| Contact Material - Plating | Silver | |
| Body Material | - | |
| Operating Temperature | - | |
| Includes | 1 pc - 1 Connector | |
| Standard Package | 100 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | EJ505A | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
EJ505A is in stock for immediate shipping now. We are the distributor of MPD (Memory Protection Devices) all series components. The condition of EJ505A is new and unused, you can buy EJ505A MPD (Memory Protection Devices) with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for EJ505A.
