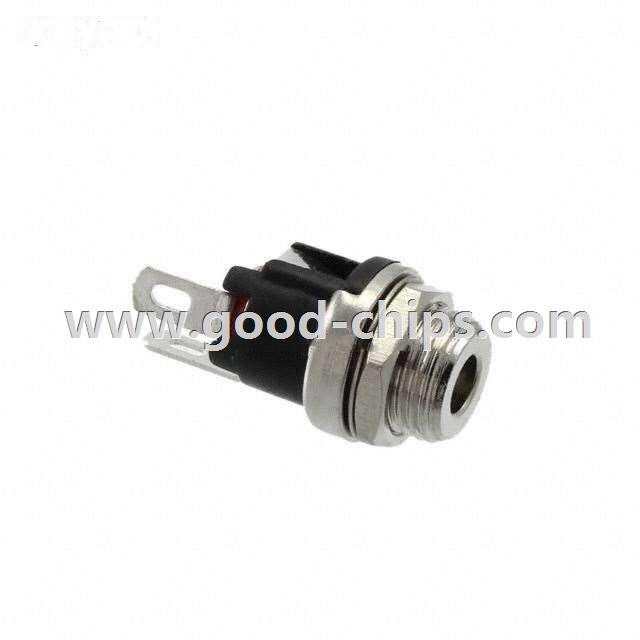

EJ501C

EJ501C
Manufacturer Part Number:EJ501C
Manufacturer:
Product Category:Barrel - Power Connectors
Available Quantity:9954 Pieces
Unit Price:Quote by Email
Description:DC JACK W/SOLDER LUGS CHASSIS MT
Lead Free Status / RoHS Status:Lead free / RoHS Compliant
Moisture Sensitivity Level (MSL):1 (Unlimited)
Production Status (Lifecycle):In Production
Delivery Time:1-2 Days
Date Code (D/C):New
Datasheet Download: EJ501C Datasheet
EJ501C´s Parameters
Internal Part Number898-EJ501C
Manufacturer Lead time6-8 weeks
ConditionNew & Unused, Original Sealed
Online Catalog MPD (Memory Protection Devices)
CategoryConnectors, Interconnects
FamilyBarrel - Power Connectors
ManufacturerMPD (Memory Protection Devices)
Series-
PackagingBulk
Part StatusActive
Connector TypeJack
GenderMale
Industry Recognized Mating Diameter1.35mm ID (0.053"), 3.50mm OD (0.138")
Actual Diameter0.051" (1.30mm ID), 0.138" (3.50mm OD)
Number of Positions/Contacts2 Conductors, 2 Contacts
Internal Switch(s)Does Not Contain Switch
Mounting TypeChassis Mount
Mounting FeatureBulkhead - Front Side Nut
TerminationSolder Eyelet(s)
ShieldingUnshielded
Features-
Insulation Color-
Voltage - Rated12VDC
Current Rating5A
Mating Length/Depth-
Contact Material - PlatingSilver
Body MaterialBrass
Operating Temperature-15°C ~ 90°C
Includes3 pcs - 1 Connector, 1 Nut, 1 Washer
Standard Package 200
Weight0.001 KG
ApplicationEmail for details
Replacement PartEJ501C
Country of OriginUSA / JAPAN / Philippines / Malaysia
MOQ1 Piece
Picture / Image / PhotoSend via email

EJ501C is in stock for immediate shipping now. We are the distributor of MPD (Memory Protection Devices) all series components. The condition of EJ501C is new and unused, you can buy EJ501C MPD (Memory Protection Devices) with us at a very low price and quick delivery.

Please kindly send us an email if you have any demands for EJ501C.
