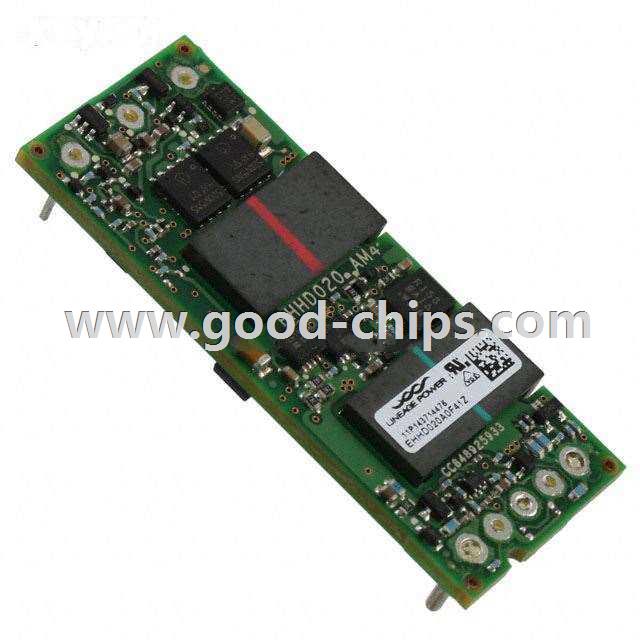

| Manufacturer Part Number: | EHHD020A0F41-HZ |
|---|---|
| Manufacturer: | GE Critical Power |
| Product Category: | DC DC Converters |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | DC/DC CONVERTER 3.3V 20A |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 2A (4 Weeks) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | EHHD020A0F41-HZ Datasheet |
| Internal Part Number | 898-EHHD020A0F41-HZ | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Featured Product | Hammerhead™ Series | |
| Manufacturer Product Page | Power Module Wizard™ | |
| Online Catalog | Hammerhead™ EHHD020A0F Series | |
| Category | Power Supplies - Board Mount | |
| Family | DC DC Converters | |
| Manufacturer | GE Critical Power | |
| Series | Hammerhead™ EHHD020A0F | |
| Packaging | Bulk | |
| Part Status | Active | |
| Type | Isolated Module | |
| Number of Outputs | 1 | |
| Voltage - Input (Min) | 18V | |
| Voltage - Input (Max) | 75V | |
| Voltage - Output 1 | 3.3V | |
| Voltage - Output 2 | - | |
| Voltage - Output 3 | - | |
| Current - Output (Max) | 20A | |
| Power (Watts) - Manufacture Series | 66W | |
| Voltage - Isolation | 2.25kV (2250V) | |
| Applications | ITE (Commercial) | |
| Features | Remote On/Off, OCP, OTP, OVP, UVLO | |
| Mounting Type | Through Hole | |
| Package / Case | 8-DIP Module, 1/8 Brick | |
| Size / Dimension | 2.28" L x 0.90" W x 0.47" H (57.9mm x 22.8mm x 12.0mm) | |
| Operating Temperature | -40°C ~ 85°C | |
| Efficiency | 91% | |
| Power (Watts) - Max | 66W | |
| Standard Package | 36 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | EHHD020A0F41-HZ | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
EHHD020A0F41-HZ is in stock for immediate shipping now. We are the distributor of GE Critical Power all series components. The condition of EHHD020A0F41-HZ is new and unused, you can buy EHHD020A0F41-HZ GE Critical Power with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for EHHD020A0F41-HZ.
