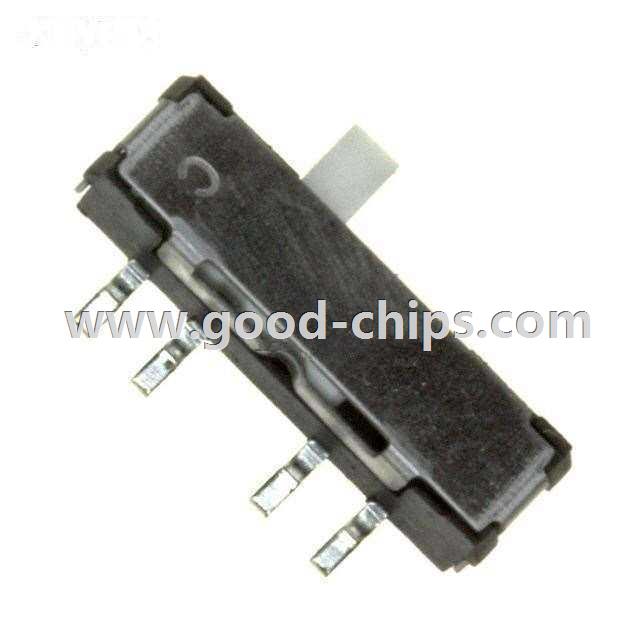

| Manufacturer Part Number: | EG1380A |
|---|---|
| Manufacturer: | E-Switch |
| Product Category: | Slide Switches |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | Slide Switch SP3T Surface Mount, Right Angle |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | EG1380A Datasheet |
| Internal Part Number | 898-EG1380A | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| RoHS Information | EG1380 Series RoHS Cert of Compliance | |
| 3D Model | EG1380A.stp | |
| Category | Switches | |
| Family | Slide Switches | |
| Manufacturer | E-Switch | |
| Series | EG | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Obsolete | |
| Circuit | SP3T | |
| Contact Timing | Not Specified | |
| Switch Function | On-On-On | |
| Current Rating | 300mA (DC) | |
| Voltage Rating - AC | - | |
| Voltage Rating - DC | 6V | |
| Actuator Type | Standard | |
| Actuator Length | 2.00mm | |
| Contact Material | - | |
| Contact Finish | - | |
| Mounting Type | Surface Mount, Right Angle | |
| Termination Style | Gull Wing | |
| Features | - | |
| Actuator Material | - | |
| Switch Travel | 2.00mm | |
| Operating Temperature | -10°C ~ 60°C | |
| Mechanical Life | 10,000 Cycles | |
| Electrical Life | 10,000 Cycles | |
| Operating Force | 250/300gf | |
| Standard Package | 1,200 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | EG1380A | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
EG1380A is in stock for immediate shipping now. We are the distributor of E-Switch all series components. The condition of EG1380A is new and unused, you can buy EG1380A E-Switch with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for EG1380A.
