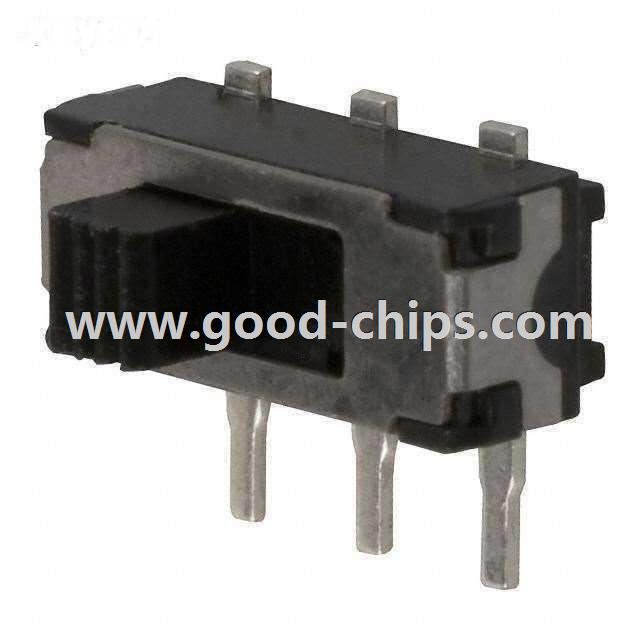

EG1270

EG1270
Manufacturer Part Number:EG1270
Manufacturer:
Product Category:Slide Switches
Available Quantity:23874 Pieces
Unit Price:Quote by Email
Description:Slide Switch SPDT Through Hole, Right Angle
Lead Free Status / RoHS Status:Lead free / RoHS Compliant
Moisture Sensitivity Level (MSL):1 (Unlimited)
Production Status (Lifecycle):In Production
Delivery Time:1-2 Days
Date Code (D/C):New
Datasheet Download: EG1270 Datasheet
EG1270´s Parameters
Internal Part Number898-EG1270
Manufacturer Lead time6-8 weeks
ConditionNew & Unused, Original Sealed
Product Training ModulesSwitch Basics
Power Switch Overview
RoHS InformationEG1270 Series RoHS Cert of Compliance
Online Catalog EG Series
CategorySwitches
FamilySlide Switches
ManufacturerE-Switch
SeriesEG
PackagingBulk
Part StatusActive
CircuitSPDT
Contact TimingNon-Shorting (BBM)
Switch FunctionOn-On
Current Rating300mA (DC)
Voltage Rating - AC-
Voltage Rating - DC6V
Actuator TypeStandard
Actuator Length2.00mm
Contact MaterialCopper Alloy
Contact FinishSilver
Mounting TypeThrough Hole, Right Angle
Termination StylePC Pin
Features-
Actuator Material-
Switch Travel2.00mm
Operating Temperature-20°C ~ 70°C
Mechanical Life-
Electrical Life-
Operating Force200gf
Standard Package 1,000
Weight0.001 KG
ApplicationEmail for details
Replacement PartEG1270
Country of OriginUSA / JAPAN / Philippines / Malaysia
MOQ1 Piece
Picture / Image / PhotoSend via email

EG1270 is in stock for immediate shipping now. We are the distributor of E-Switch all series components. The condition of EG1270 is new and unused, you can buy EG1270 E-Switch with us at a very low price and quick delivery.

Please kindly send us an email if you have any demands for EG1270.
