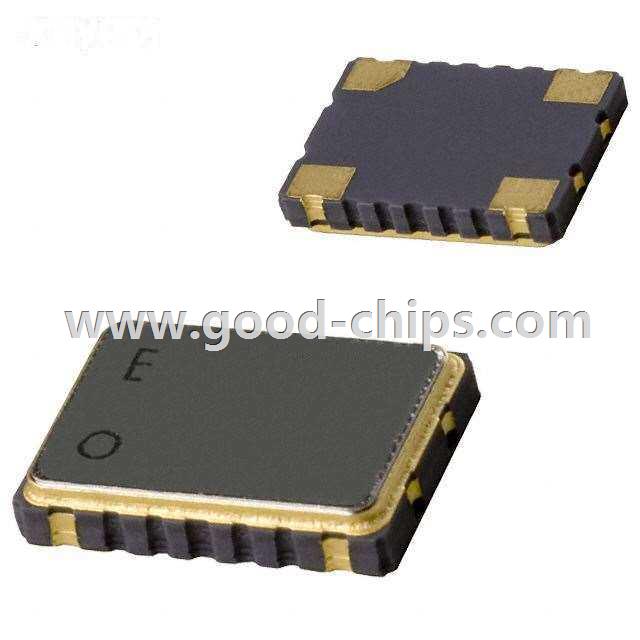

Manufacturer Part Number: | EG-2001CA 106.2500M-PCHL0 |
---|---|
Manufacturer: | EPSON |
Product Category: | Oscillators |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | 106.25MHz CMOS SO (SAW) Oscillator Surface Mount 3.3V 50mA Enable/Disable |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | EG-2001CA 106.2500M-PCHL0 Datasheet |
Internal Part Number | 898-EG-2001CA 106.2500M-PCHL0 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Product Training Modules | SPXO and VCXO SAW Oscillator | |
RoHS Information | EG-2001CA Certificate of Compliance | |
Online Catalog | EG-2001CA and EG-2021CA Series | |
Category | Crystals and Oscillators | |
Family | Oscillators | |
Manufacturer | EPSON | |
Series | EG-2001CA | |
Packaging | Tape & Reel (TR) | |
Part Status | Active | |
Type | SO (SAW) | |
Frequency | 106.25MHz | |
Function | Enable/Disable | |
Output | CMOS | |
Voltage - Supply | 3.3V | |
Frequency Stability | ±100ppm | |
Operating Temperature | 0°C ~ 70°C | |
Current - Supply (Max) | 50mA | |
Ratings | - | |
Mounting Type | Surface Mount | |
Size / Dimension | 0.276" L x 0.197" W (7.00mm x 5.00mm) | |
Height | 0.055" (1.40mm) | |
Package / Case | 4-SMD, No Lead (DFN, LCC) | |
Current - Supply (Disable) (Max) | 10µA | |
Standard Package | 1,000 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | EG-2001CA 106.2500M-PCHL0 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
EG-2001CA 106.2500M-PCHL0 is in stock for immediate shipping now. We are the distributor of EPSON all series components. The condition of EG-2001CA 106.2500M-PCHL0 is new and unused, you can buy EG-2001CA 106.2500M-PCHL0 EPSON with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for EG-2001CA 106.2500M-PCHL0.
