| Manufacturer Part Number: | EFC6611R-TF |
|---|---|
| Manufacturer: | ON Semiconductor |
| Product Category: | Transistors - FETs, MOSFETs - Arrays |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | MOSFET 2N-CH 12V 27A EFCP |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | EFC6611R-TF Datasheet |
| Internal Part Number | 898-EFC6611R-TF | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| PCN Assembly/Origin | Assembly Chg 18/Mar/2016 | |
| Category | Discrete Semiconductor Products | |
| Family | Transistors - FETs, MOSFETs - Arrays | |
| Manufacturer | ON Semiconductor | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| FET Type | 2 N-Channel (Dual) Common Drain | |
| FET Feature | Logic Level Gate, 2.5V Drive | |
| Drain to Source Voltage (Vdss) | - | |
| Current - Continuous Drain (Id) @ 25°C | - | |
| Rds On (Max) @ Id, Vgs | - | |
| Vgs(th) (Max) @ Id | - | |
| Gate Charge (Qg) @ Vgs | 100nC @ 4.5V | |
| Input Capacitance (Ciss) @ Vds | - | |
| Power - Max | 2.5W | |
| Operating Temperature | 150°C (TJ) | |
| Mounting Type | Surface Mount | |

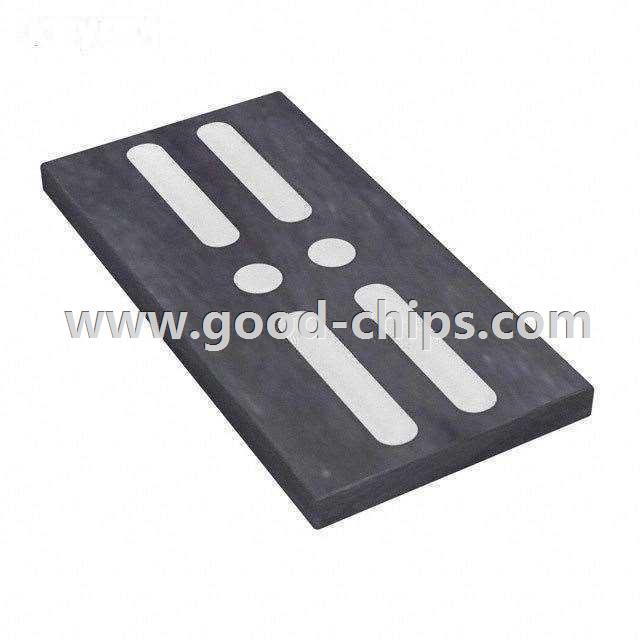

| Package / Case | 6-SMD, No Lead | |
| Supplier Device Package | 6-CSP (1.77x3.54) | |
| Standard Package | 5,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | EFC6611R-TF | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
EFC6611R-TF is in stock for immediate shipping now. We are the distributor of ON Semiconductor all series components. The condition of EFC6611R-TF is new and unused, you can buy EFC6611R-TF ON Semiconductor with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for EFC6611R-TF.
