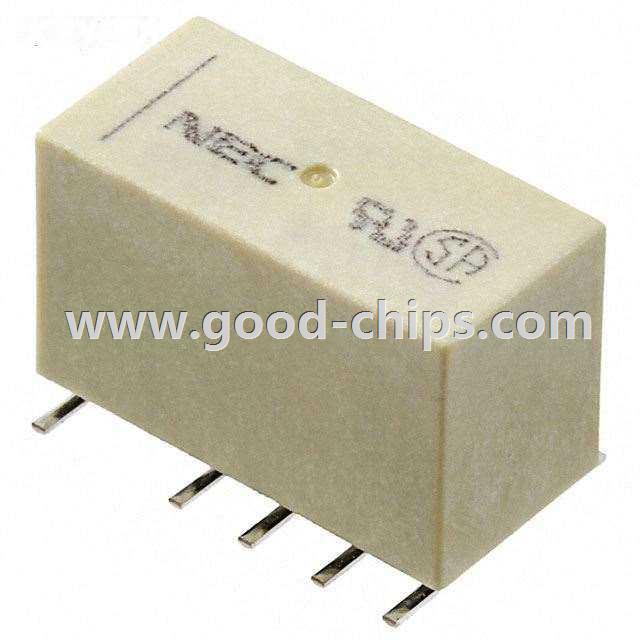

| Manufacturer Part Number: | EE2-5TNU |
|---|---|
| Manufacturer: | Kemet |
| Product Category: | Signal Relays, Up to 2 Amps |
| Available Quantity: | 12031 Pieces |
| Unit Price: | Quote by Email |
| Description: | General Purpose Relay DPDT (2 Form C) Surface Mount |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | EE2-5TNU Datasheet |
| Internal Part Number | 898-EE2-5TNU | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | Signal Relays | |
| Featured Product | EE2 and EC2 Electromechanical Signal Relays | |
| Online Catalog | EC2 and EE2 Series | |
| Category | Relays | |
| Family | Signal Relays, Up to 2 Amps | |
| Manufacturer | Kemet | |
| Series | EE2 | |
| Packaging | Tube | |
| Part Status | Active | |
| Relay Type | General Purpose | |
| Coil Type | Latching, Dual Coil | |
| Coil Current | 28mA | |
| Coil Voltage | 5VDC | |
| Contact Form | DPDT (2 Form C) | |
| Contact Rating (Current) | 2A | |
| Switching Voltage | 250VAC, 220VDC - Max | |
| Turn On Voltage (Max) | 3.75 VDC | |
| Turn Off Voltage (Min) | - | |
| Operate Time | 2ms | |
| Release Time | 1ms | |
| Features | - | |
| Mounting Type | Surface Mount | |
| Termination Style | Gull Wing | |
| Contact Material | Silver Alloy, Gold Alloy | |
| Coil Power | 140 mW | |
| Coil Resistance | 178 Ohms | |
| Operating Temperature | -40°C ~ 85°C | |
| Standard Package | 35 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | EE2-5TNU | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
EE2-5TNU is in stock for immediate shipping now. We are the distributor of Kemet all series components. The condition of EE2-5TNU is new and unused, you can buy EE2-5TNU Kemet with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for EE2-5TNU.
