| Manufacturer Part Number: | EDN.0M.305.XLM |
|---|---|
| Manufacturer: | LEMO |
| Product Category: | Circular Connectors |
| Available Quantity: | 9017 Pieces |
| Unit Price: | Quote by Email |

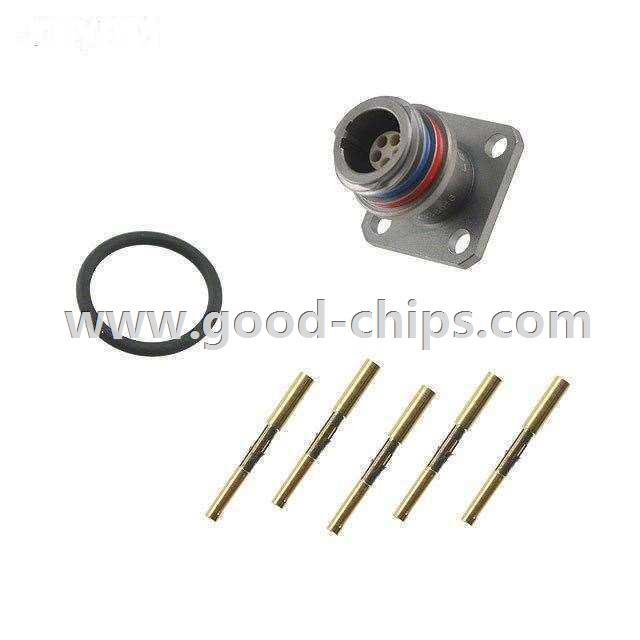

| Description: | 5 Position Circular Connector Receptacle, Female Sockets Crimp Gold |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | EDN.0M.305.XLM Datasheet |
| Internal Part Number | 898-EDN.0M.305.XLM | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | M Series | |
| Featured Product | M Series Ratchet Coupling Type Connectors M Series - Rugged, Waterproof USB Connectors (IP68) | |
| Online Catalog | M Series | |
| Category | Connectors, Interconnects | |
| Family | Circular Connectors | |
| Manufacturer | LEMO | |
| Series | 0M | |
| Packaging | Bulk | |
| Part Status | Active | |
| Connector Type | Receptacle, Female Sockets | |
| Number of Positions | 5 | |
| Shell Size - Insert | 305 | |
| Shell Size, MIL | - | |
| Mounting Type | Panel Mount, Flange | |
| Termination | Crimp | |
| Fastening Type | Threaded | |
| Orientation | N (Normal) | |
| Ingress Protection | IP68 - Dust Tight, Waterproof | |
| Shell Material, Finish | Aluminum Alloy, Nickel Plated | |
| Contact Finish | Gold | |
| Features | Shielded | |
| Contact Finish Thickness | 59µin (1.50µm) | |
| Current Rating | 6.5A | |
| Voltage - Rated | - | |
| Operating Temperature | -55°C ~ 200°C | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | EDN.0M.305.XLM | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
EDN.0M.305.XLM is in stock for immediate shipping now. We are the distributor of LEMO all series components. The condition of EDN.0M.305.XLM is new and unused, you can buy EDN.0M.305.XLM LEMO with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for EDN.0M.305.XLM.
