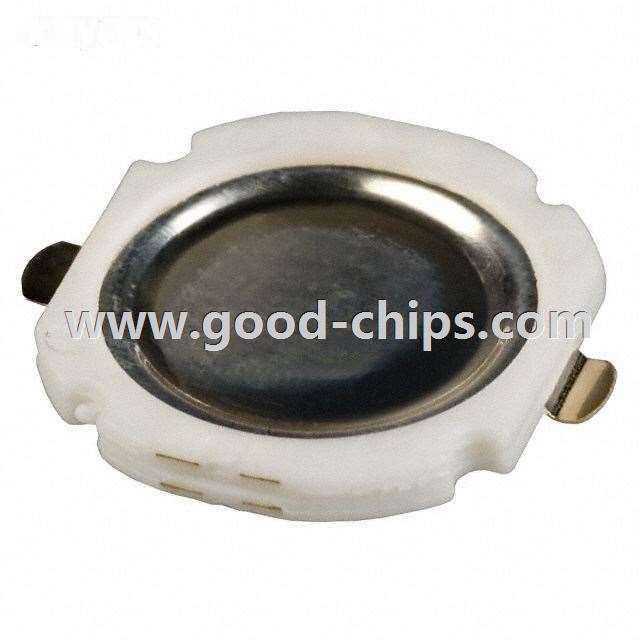

| Manufacturer Part Number: | ED S SC 1 |
|---|---|
| Manufacturer: | C&K Components |
| Product Category: | Tactile Switches |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | Tactile Switch SPST-NO Top Actuated Surface Mount |
| Lead Free Status / RoHS Status: | Contains lead / RoHS non-compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | ED S SC 1 Datasheet |
| Internal Part Number | 898-ED S SC 1 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Category | Switches | |
| Family | Tactile Switches | |
| Manufacturer | C&K Components | |
| Series | ED | |
| Packaging | Tray | |
| Part Status | Obsolete | |
| Circuit | SPST-NO | |
| Switch Function | Off-Mom | |
| Contact Rating @ Voltage | 0.1A @ 100VAC/DC | |
| Actuator Type | Without (Recessed) | |
| Mounting Type | Surface Mount | |
| Actuator Height off PCB, from Pins | 1.20mm | |
| Actuator Orientation | Top Actuated | |
| Termination Style | SMD (SMT) Tab | |
| Outline | - | |
| Illumination | Non-Illuminated | |
| Illumination Voltage (Nominal) | - | |
| Illumination Type, Color | - | |
| Operating Force | 240gf | |
| Ingress Protection | IP67 - Dust Tight, Waterproof | |
| Features | Sealed - Fully | |
| Actuator Material | - | |
| Switch Travel | 0.30mm | |
| Mechanical Life | 1,000,000 Cycles | |
| Operating Temperature | -25°C ~ 70°C | |
| Standard Package | 50 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | ED S SC 1 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
ED S SC 1 is in stock for immediate shipping now. We are the distributor of C&K Components all series components. The condition of ED S SC 1 is new and unused, you can buy ED S SC 1 C&K Components with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for ED S SC 1.
