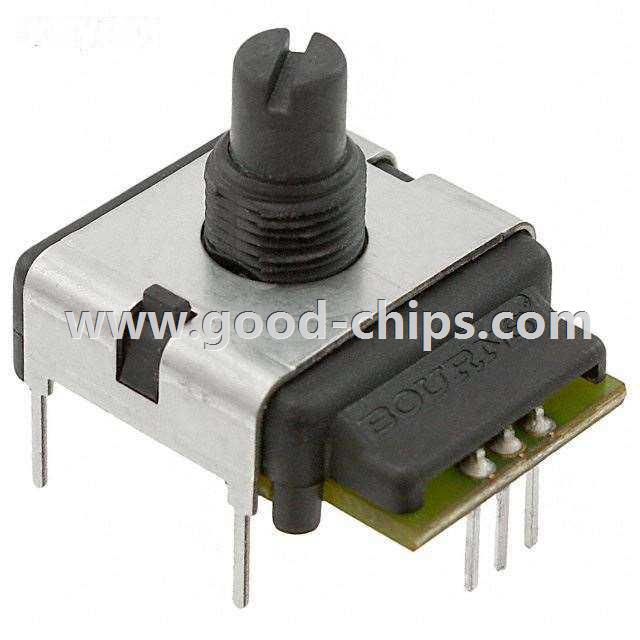

| Manufacturer Part Number: | ECW1J-B16-BC0024 |
|---|---|
| Manufacturer: | Bourns Inc. |
| Product Category: | Encoders |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | ENCODER DIGITAL CONTACTING 24CPR |
| Lead Free Status / RoHS Status: | Contains lead / RoHS non-compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | ECW1J-B16-BC0024 Datasheet |
| Internal Part Number | 898-ECW1J-B16-BC0024 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| PCN Obsolescence/ EOL | EC Rotary Encoders 31/Jul/2012 | |
| PCN Design/Specification | ECW Shaft Model Oct/2012 | |
| Category | Sensors, Transducers | |
| Family | Encoders | |
| Manufacturer | Bourns Inc. | |
| Series | ECW | |
| Part Status | Obsolete | |
| Encoder Type | Mechanical | |
| Output Type | Quadrature (Incremental) | |
| Pulses per Revolution | 24 | |
| Voltage - Supply | - | |
| Actuator Type | 1/4" Dia Slotted End | |
| Detent | Yes | |
| Built in Switch | No | |
| Mounting Type | Panel, PCB Through Hole | |
| Orientation | Vertical | |
| Termination Style | PC Pin | |
| Rotational Life (Cycles Min) | 200K | |
| Standard Package | 45 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | ECW1J-B16-BC0024 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
ECW1J-B16-BC0024 is in stock for immediate shipping now. We are the distributor of Bourns Inc. all series components. The condition of ECW1J-B16-BC0024 is new and unused, you can buy ECW1J-B16-BC0024 Bourns Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for ECW1J-B16-BC0024.
