Manufacturer Part Number: | ECW-F2225HAQ |
---|---|
Manufacturer: | Panasonic Electronic Components |
Product Category: | Film Capacitors |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |

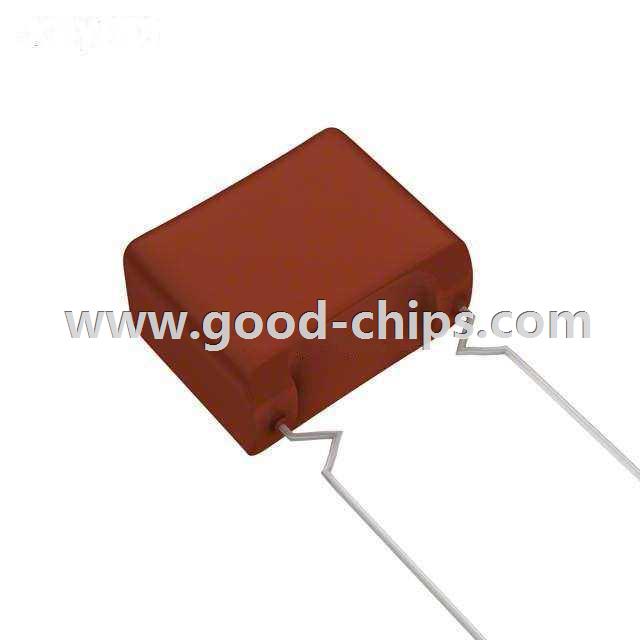

Description: | 2.2µF Film Capacitor 250V Polypropylene (PP), Metallized Radial 0.740" L x 0.496" W (18.80mm x 12.60mm) |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | ECW-F2225HAQ Datasheet |
Internal Part Number | 898-ECW-F2225HAQ | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
EDA / CAD Models | Download from Accelerated Designs | |
Category | Capacitors | |
Family | Film Capacitors | |
Manufacturer | Panasonic Electronic Components | |
Series | ECW-F(A) | |
Packaging | Bulk | |
Part Status | Active | |
Capacitance | 2.2µF | |
Tolerance | ±3% | |
Voltage Rating - AC | - | |
Voltage Rating - DC | 250V | |
Dielectric Material | Polypropylene (PP), Metallized | |
ESR (Equivalent Series Resistance) | - | |
Operating Temperature | -40°C ~ 105°C | |
Mounting Type | Through Hole | |
Package / Case | Radial | |
Size / Dimension | 0.740" L x 0.496" W (18.80mm x 12.60mm) | |
Height - Seated (Max) | 1.028" (26.10mm) | |
Termination | PC Pins | |
Lead Spacing | 0.591" (15.00mm) | |
Applications | High Frequency, Switching | |
Features | - | |
Standard Package | 200 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | ECW-F2225HAQ | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
ECW-F2225HAQ is in stock for immediate shipping now. We are the distributor of Panasonic Electronic Components all series components. The condition of ECW-F2225HAQ is new and unused, you can buy ECW-F2225HAQ Panasonic Electronic Components with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for ECW-F2225HAQ.
