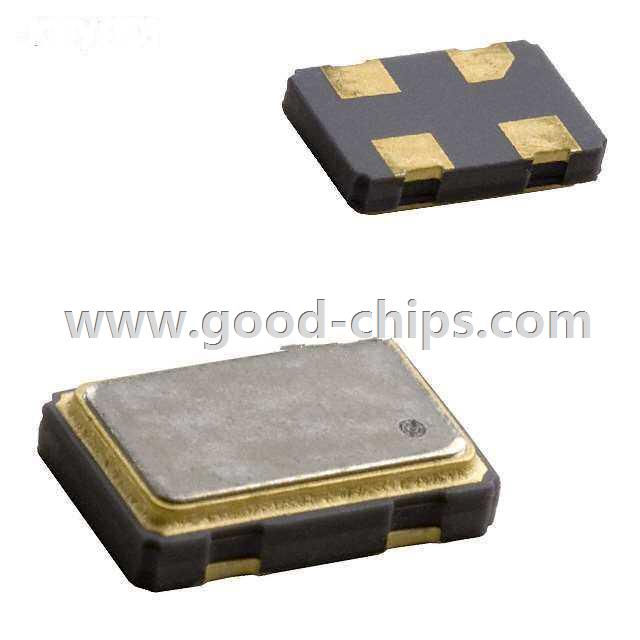

Manufacturer Part Number: | ECS-UPO-3X5 |
---|---|
Manufacturer: | ECS Inc. |
Product Category: | Programmable Oscillators |
Available Quantity: | 13010 Pieces |
Unit Price: | Quote by Email |
Description: | 1MHz ~ 125MHz CMOS XO (Standard) Programmable Oscillator Surface Mount 3.3V, 5V 50mA Enable/Disable |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | ECS-UPO-3X5 Datasheet |
Internal Part Number | 898-ECS-UPO-3X5 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Online Catalog | ECS Blank Programmable Oscillators | |
Category | Crystals and Oscillators | |
Family | Programmable Oscillators | |
Manufacturer | ECS Inc. | |
Series | - | |
Packaging | Tape & Reel (TR) | |
Part Status | Active | |
Type | XO (Standard) | |
Programmable Type | Blank (User Must Program) | |
Available Frequency Range | 1MHz ~ 125MHz | |
Function | Enable/Disable | |
Output | CMOS | |
Voltage - Supply | 3.3V, 5V | |
Frequency Stability | ±50ppm, ±100ppm | |
Frequency Stability (Total) | - | |
Operating Temperature | -40°C ~ 85°C, 0° ~ 70°C | |
Spread Spectrum Bandwidth | - | |
Current - Supply (Max) | 50mA | |
Ratings | - | |
Mounting Type | Surface Mount | |
Package / Case | 4-SMD, No Lead (DFN, LCC) | |
Size / Dimension | 0.197" L x 0.124" W (5.00mm x 3.15mm) | |
Height | 0.043" (1.10mm) | |
Current - Supply (Disable) (Max) | - | |
Standard Package | 1,000 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | ECS-UPO-3X5 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
ECS-UPO-3X5 is in stock for immediate shipping now. We are the distributor of ECS Inc. all series components. The condition of ECS-UPO-3X5 is new and unused, you can buy ECS-UPO-3X5 ECS Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for ECS-UPO-3X5.
