| Manufacturer Part Number: | ECS-TXO-5032-122.8-TR |
|---|---|
| Manufacturer: | ECS Inc. |
| Product Category: | Oscillators |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |

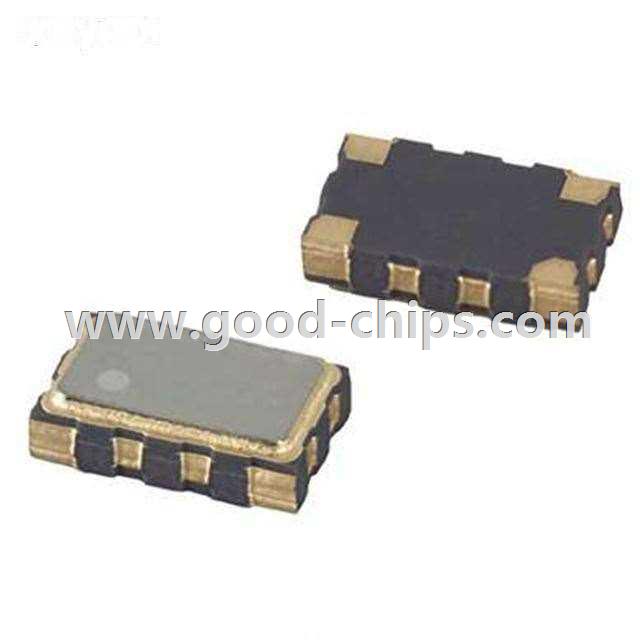

| Description: | 12.288MHz HCMOS TCXO Oscillator Surface Mount 3.3V 6mA |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | ECS-TXO-5032-122.8-TR Datasheet |
| Internal Part Number | 898-ECS-TXO-5032-122.8-TR | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Featured Product | ECS-TXO-5032 Series HCMOS SMD TCXO Oscillators | |
| Online Catalog | ECS-TXO-5032 Series | |
| Category | Crystals and Oscillators | |
| Family | Oscillators | |
| Manufacturer | ECS Inc. | |
| Series | ECS-TXO-5032 | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Type | TCXO | |
| Frequency | 12.288MHz | |
| Function | - | |
| Output | HCMOS | |
| Voltage - Supply | 3.3V | |
| Frequency Stability | ±2.5ppm | |
| Operating Temperature | -30°C ~ 85°C | |
| Current - Supply (Max) | 6mA | |
| Ratings | - | |
| Mounting Type | Surface Mount | |
| Size / Dimension | 0.197" L x 0.126" W (5.00mm x 3.20mm) | |
| Height | 0.059" (1.50mm) | |
| Package / Case | 4-SMD, No Lead (DFN, LCC) | |
| Current - Supply (Disable) (Max) | - | |
| Standard Package | 1,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | ECS-TXO-5032-122.8-TR | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
ECS-TXO-5032-122.8-TR is in stock for immediate shipping now. We are the distributor of ECS Inc. all series components. The condition of ECS-TXO-5032-122.8-TR is new and unused, you can buy ECS-TXO-5032-122.8-TR ECS Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for ECS-TXO-5032-122.8-TR.
